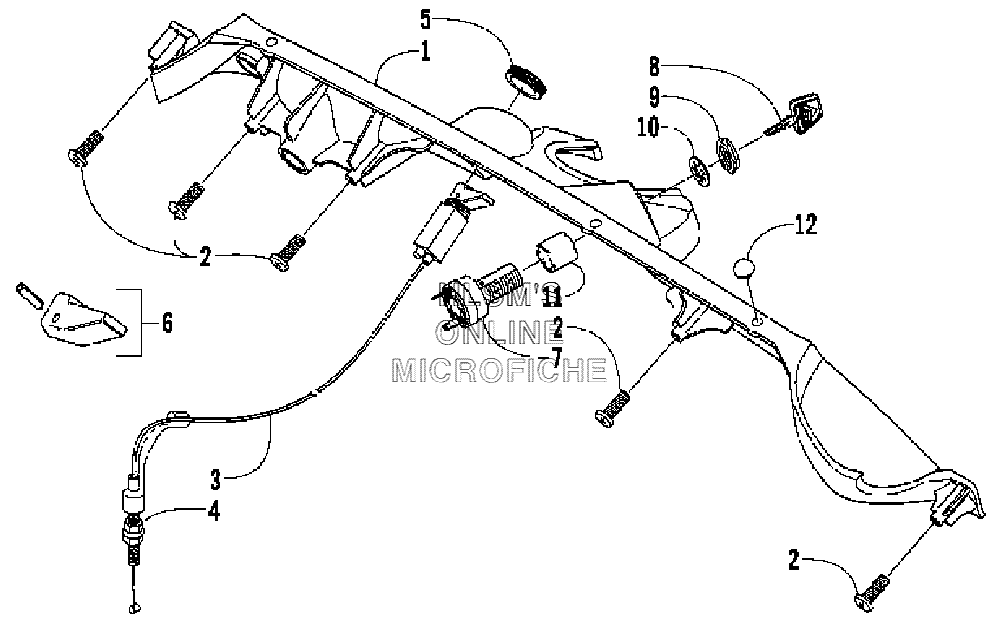

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat Firecat 700 (Green) - 2004 года выпуска
-
№АртикулНазвание
-
13606-214 CONSOLECONSOLE
-
20623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
30687-157 CABLE, CHOKE (INC. 4, 6)CABLE, CHOKE (INC. 4, 6)
-
40623-464 NUT, LOCKING, THROTTLE CABLENUT, LOCKING, THROTTLE CABLE
-
50687-132 NUT, CHOKENUT, CHOKE
-
61639-835 CHOKE LEVER KITCHOKE LEVER KIT
-
70609-286 SWITCH, IGNITION (INC. 8)SWITCH, IGNITION (INC. 8)
-
90609-113 NUT, RETAININGNUT, RETAINING
-
100123-899 WASHER, IGNITION SWITCHWASHER, IGNITION SWITCH
-
110609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
121612-287 BUMPER, MOLDEDBUMPER, MOLDED
