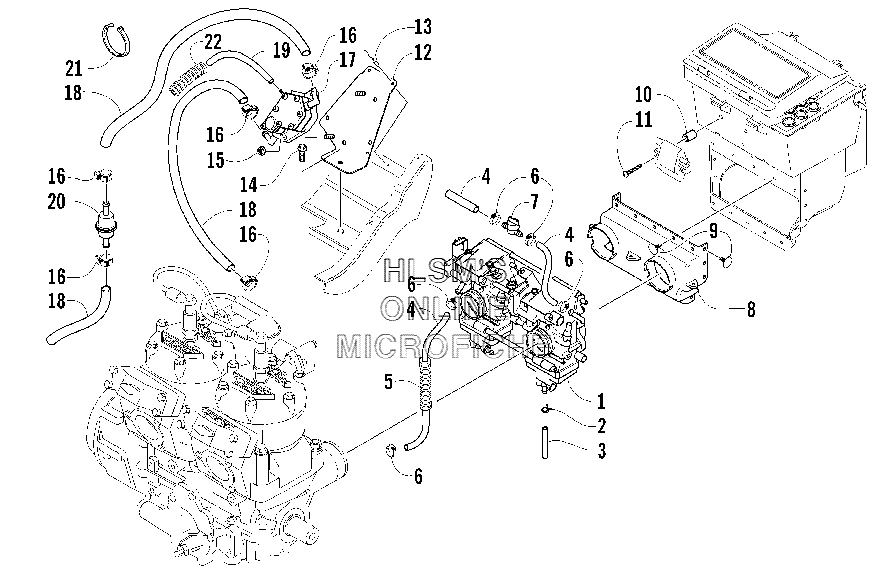

CARBURETOR AND FUEL PUMP ASSEMBLY для Arctic Cat King Cat 900 (Black) - 2004 года выпуска
-
№АртикулНазвание
-
11670-546 CARBURETOR, TM40, B286CARBURETOR, TM40, B286
-
20623-652 CLAMP, HOSECLAMP, HOSE
-
30610-442 HOSE, DRAINHOSE, DRAIN
-
40610-513 HOSE, COOLANT (25 FT)HOSE, COOLANT (25 FT)
-
50619-776 CONDUIT, FLEXIBLE (5 FT)CONDUIT, FLEXIBLE (5 FT)
-
60623-373 CLAMP, HOSECLAMP, HOSE
-
71670-111 VALVE, SHUT, OFFVALVE, SHUT, OFF
-
81670-306 BOOT, CARBURETORBOOT, CARBURETOR
-
90623-165 CLIP, RETAININGCLIP, RETAINING
-
101623-045 SPACERSPACER
-
118017-406 SCREW, MACHINESCREW, MACHINE
-
120770-497 PLATE, MOUNTING, FUEL PUMPPLATE, MOUNTING, FUEL PUMP
-
130623-149 RIVETRIVET
-
148020-040 SCREW, CAPSCREW, CAP
-
158048-366 NUT W/WASHERNUT W/WASHER
-
160124-045 CLAMP, HOSECLAMP, HOSE
-
171670-161 PUMP, FUELPUMP, FUEL
-
186101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
186101-009 HOSE, GASLINE (50 FT)HOSE, GASLINE (50 FT)
-
190610-007 HOSE, IMPULSE (25 FT)HOSE, IMPULSE (25 FT)
-
201670-166 FILTER, FUELFILTER, FUEL
-
210123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
220716-558 CONDUIT, FLEXIBLE (10 FT)CONDUIT, FLEXIBLE (10 FT)
