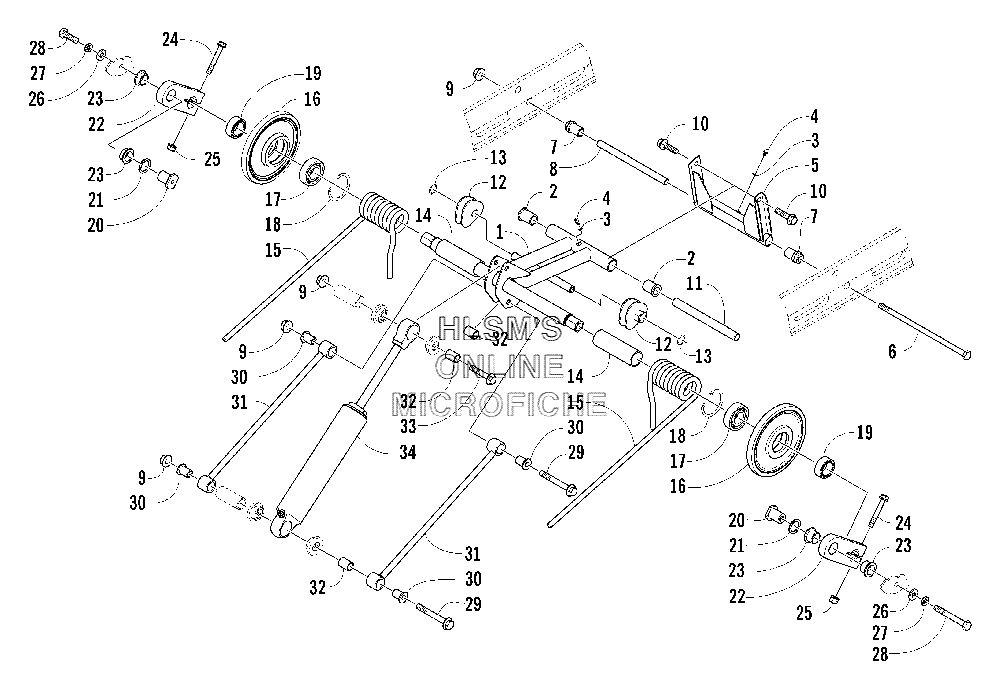

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat King Cat 900 (Black) - 2004 года выпуска
-
№АртикулНазвание
-
11704-056 ARM, IDLER (INC. 2 AND ONE NO. 3, 4)ARM, IDLER (INC. 2 AND ONE NO. 3, 4)
-
22604-128 BUSHING, FLAREDBUSHING, FLARED
-
31623-011 WASHER, PLASTICWASHER, PLASTIC
-
41623-010 FITTING, GREASE, SELF, TAPPINGFITTING, GREASE, SELF, TAPPING
-
51704-058 ARM (REAR) (INC. ONE NO. 3, 4)ARM (REAR) (INC. ONE NO. 3, 4)
-
60623-907 SCREW, CAPSCREW, CAP
-
71604-307 AXLE, SERRATEDAXLE, SERRATED
-
80604-194 TUBE, AXLETUBE, AXLE
-
98048-486 NUT, LOCKNUT, LOCK
-
108020-220 SCREW, CAPSCREW, CAP
-
112604-176 AXLE, ALUMINUMAXLE, ALUMINUM
-
121604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
121604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
130623-138 RING, RETAININGRING, RETAINING
-
140114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
152604-566 SPRING, SUSPENSION (RIGHT) (TITANIUM)SPRING, SUSPENSION (RIGHT) (TITANIUM)
-
152604-567 SPRING, SUSPENSION (LEFT) (TITANIUM)SPRING, SUSPENSION (LEFT) (TITANIUM)
-
161604-690 WHEEL, IDLER (INC. 17, 18)WHEEL, IDLER (INC. 17, 18)
-
170107-598 BEARINGBEARING
-
180123-798 RING, RETAININGRING, RETAINING
-
191604-507 SPACER, PIVOT IDLER ARMSPACER, PIVOT IDLER ARM
-
201604-181 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
211604-187 WASHER, PIVOT IDLER ARMWASHER, PIVOT IDLER ARM
-
220704-981 ARM, PIVOT IDLER (INC. 23, 25)ARM, PIVOT IDLER (INC. 23, 25)
-
231604-202 BUSHING, FLAREDBUSHING, FLARED
-
248020-138 SCREW, CAPSCREW, CAP
-
258048-426 NUT, LOCKNUT, LOCK
-
260623-044 WASHERWASHER
-
278051-277 WASHER, LOCKWASHER, LOCK
-
288002-224 SCREW, CAPSCREW, CAP
-
298020-233 SCREW, CAPSCREW, CAP
-
301604-498 AXLE, LINK, FLANGEDAXLE, LINK, FLANGED
-
310704-350 LINK REAR SHOCKLINK REAR SHOCK
-
321604-139 SLEEVE, SHOCKSLEEVE, SHOCK
-
338020-226 SCREW, CAPSCREW, CAP
-
341704-154 SHOCK ABSORBER ARM (REAR)SHOCK ABSORBER ARM (REAR)
