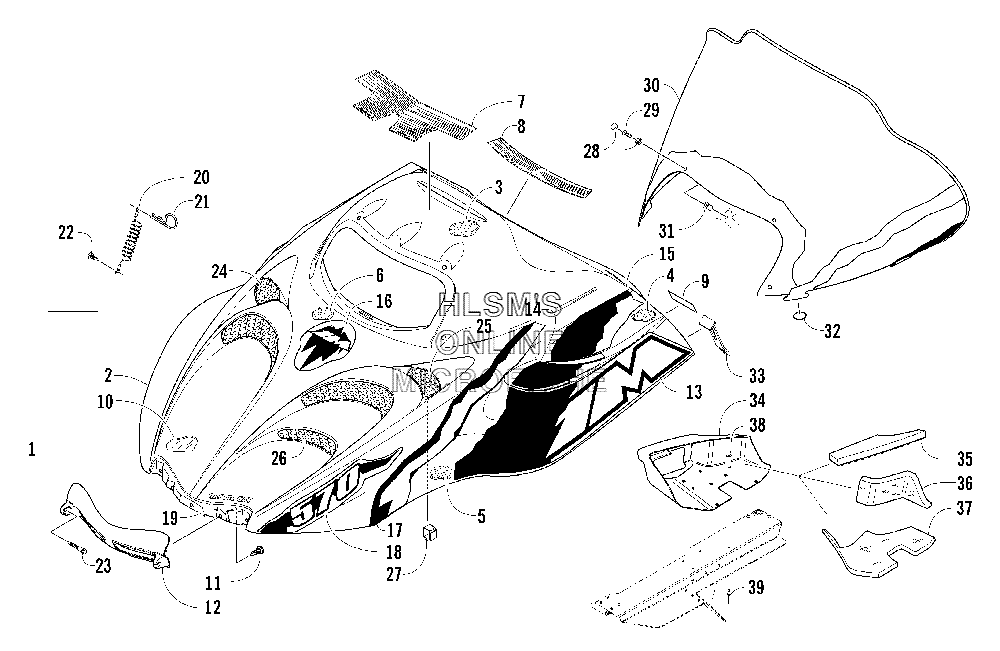

HOOD AND WINDSHIELD ASSY. для Arctic Cat Mountain Cat 570 - 2004 года выпуска
-
№АртикулНазвание
-
11718-409 HOOD W/DECALS (INC. 2, 19)HOOD W/DECALS (INC. 2, 19)
-
21718-408 HOOD W/O DECALS (INC. 3, 12)HOOD W/O DECALS (INC. 3, 12)
-
30717-148 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30717-149 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40717-140 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
40717-141 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
50717-164 FOAM, HOOD (FRONT/RIGHT)FOAM, HOOD (FRONT/RIGHT)
-
50617-165 FOAM, HOOD (FRONT/LEFT)FOAM, HOOD (FRONT/LEFT)
-
60717-138 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
110623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
123606-032 HINGE, HOODHINGE, HOOD
-
135611-412 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
135611-413 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
145611-418 DECAL, HOOD, VENT (LOWER/RIGHT)DECAL, HOOD, VENT (LOWER/RIGHT)
-
145611-419 DECAL, HOOD, VENT (LOWER/LEFT)DECAL, HOOD, VENT (LOWER/LEFT)
-
155611-420 DECAL, HOOD, VENT (UPPER/RIGHT)DECAL, HOOD, VENT (UPPER/RIGHT)
-
155611-421 DECAL, HOOD, VENT (UPPER/LEFT)DECAL, HOOD, VENT (UPPER/LEFT)
-
165611-424 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
175611-422 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
175611-423 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
-
185611-416 DECAL, HOOD, "570" (RIGHT)DECAL, HOOD, "570" (RIGHT)
-
185611-417 DECAL, HOOD, "570" (LEFT)DECAL, HOOD, "570" (LEFT)
-
195611-411 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
202606-247 CABLE, HOODCABLE, HOOD
-
210623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
220623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
231623-016 SCREW, MACHINESCREW, MACHINE
-
242706-194 SCREEN, HOOD (RIGHT)SCREEN, HOOD (RIGHT)
-
252706-195 SCREEN, HOOD (UPPER/LEFT)SCREEN, HOOD (UPPER/LEFT)
-
262606-325 SCREEN, HOOD (LEFT)SCREEN, HOOD (LEFT)
-
270123-394 CLIP, RETAININGCLIP, RETAINING
-
280124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
290623-902 SCREW, MACHINESCREW, MACHINE
-
303606-084 WINDSHIELDWINDSHIELD
-
310623-845 NUT, EXPANSIONNUT, EXPANSION
-
320616-032 O-RINGO-RING
-
331606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
342606-370 DUCT, AIR, OUTERDUCT, AIR, OUTER
-
350617-427 FOAM, AIR, OUTER DUCT (TOP)FOAM, AIR, OUTER DUCT (TOP)
-
360617-428 FOAM, AIR, OUTER DUCT (SIDE)FOAM, AIR, OUTER DUCT (SIDE)
-
370617-425 FOAM, AIR, OUTER DUCT (BOTTOM)FOAM, AIR, OUTER DUCT (BOTTOM)
-
380123-802 WASHERWASHER
-
398060-508 RIVETRIVET
