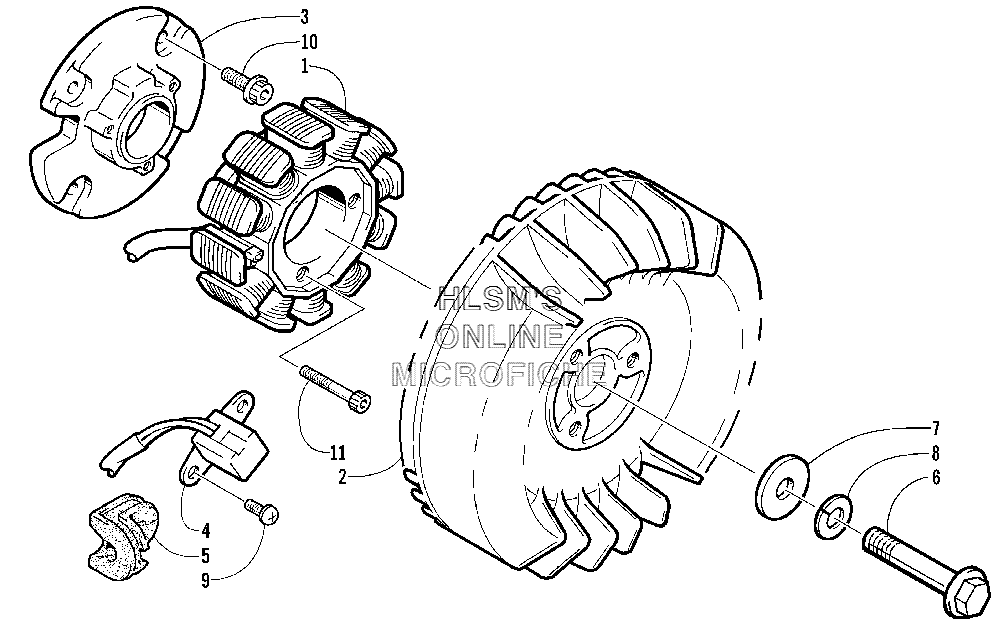

MAGNETO для Arctic Cat Mountain Cat 570 - 2004 года выпуска
-
№АртикулНазвание
-
13005-636 STATOR ASSY.STATOR ASSY.
-
23006-467 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
33006-022 BASE, STATOR, PLATEBASE, STATOR, PLATE
-
43005-926 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
53006-531 GROMMET, MAGNETO LEAD WIREGROMMET, MAGNETO LEAD WIRE
-
63006-476 BOLTBOLT
-
73005-987 WASHERWASHER
-
83004-362 WASHER, LOCKWASHER, LOCK
-
93004-706 SCREWSCREW
-
103004-378 BOLTBOLT
-
113005-433 BOLTBOLT
