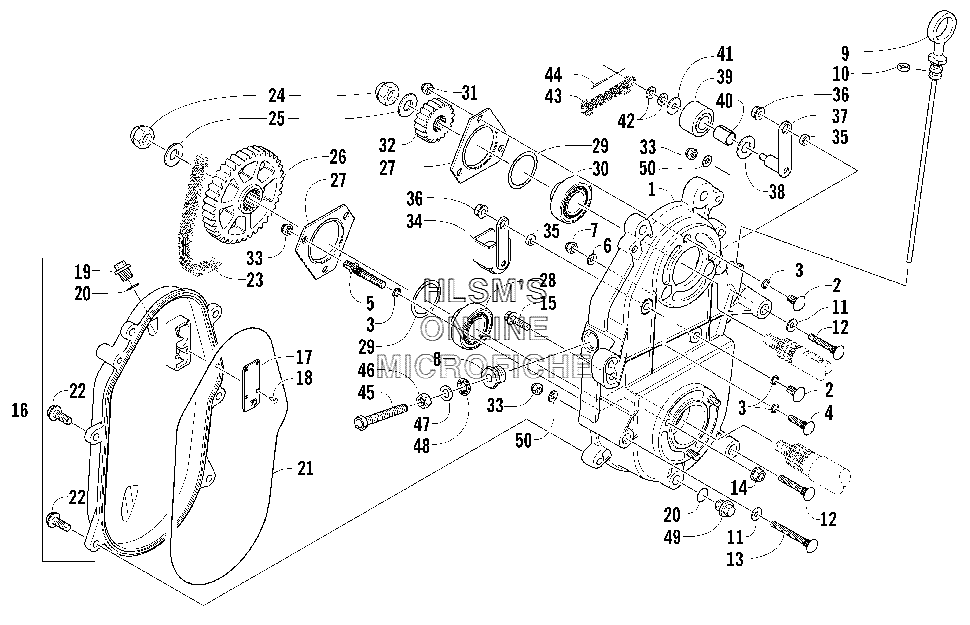

DRIVE/DROPCASE ASSY. для Arctic Cat Mountain Cat 800 EFI (Red 151) - 2004 года выпуска
-
№АртикулНазвание
-
10702-531 DROPCASE W/STUDS (INC. 2, 8)DROPCASE W/STUDS (INC. 2, 8)
-
20123-523 BOLT, RIBBEDBOLT, RIBBED
-
30607-025 O-RING, STUDO-RING, STUD
-
40623-117 BOLT, RIBBEDBOLT, RIBBED
-
50623-317 STUDSTUD
-
60623-094 WASHERWASHER
-
78042-426 NUTNUT
-
80602-876 ADAPTER, MANUAL ADJUSTADAPTER, MANUAL ADJUST
-
90702-463 STICK, OIL LEVEL (INC. 10)STICK, OIL LEVEL (INC. 10)
-
101602-212 O-RINGIL LEVEL STICKO-RINGIL LEVEL STICK
-
118050-252 WASHERWASHER
-
128011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
131623-121 BOLT, CARRIAGEBOLT, CARRIAGE
-
148048-426 NUT, LOCKNUT, LOCK
-
158020-135 SCREW, CAPSCREW, CAP
-
167996-644 COVER, DROPCASE, ASSY. (INC. 17, 19 AND ONE NO. 20)COVER, DROPCASE, ASSY. (INC. 17, 19 AND ONE NO. 20)
-
171602-152 COVER, OIL VENTCOVER, OIL VENT
-
180623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
190123-333 PLUG, DROPCASEPLUG, DROPCASE
-
201602-213 O-RINGO-RING
-
210602-437 SEAL, DROPCASESEAL, DROPCASE
-
228020-132 SCREW, CAPSCREW, CAP
-
231602-042 CHAIN, 72PCHAIN, 72P
-
231602-041 CHAIN, 70P (0, 3, 000 FT ALT.)CHAIN, 70P (0, 3, 000 FT ALT.)
-
240623-465 NUT, LOCKNUT, LOCK
-
250623-231 WASHER, SPRINGWASHER, SPRING
-
261602-394 SPROCKET (43 TEETH)SPROCKET (43 TEETH)
-
260602-453 SPROCKET (40 TEETH) (0, 3, 000 FT ALT.)SPROCKET (40 TEETH) (0, 3, 000 FT ALT.)
-
271602-521 PLATE, FLANGEPLATE, FLANGE
-
281602-051 BEARING, 1 IN.BEARING, 1 IN.
-
290107-003 SEAL, O-RINGSEAL, O-RING
-
301602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
318041-426 NUT, LOCKNUT, LOCK
-
320602-444 SPROCKET (19 TEETH)SPROCKET (19 TEETH)
-
338040-426 NUT, LOCKNUT, LOCK
-
340702-324 ARM, TIGHTENER, ASSY.ARM, TIGHTENER, ASSY.
-
350602-369 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
368048-366 NUT, LOCKNUT, LOCK
-
370702-115 ARM, TIGHTENERARM, TIGHTENER
-
380623-283 WASHERWASHER
-
390702-129 ROLLER, TIGHTENER (INC. 40)ROLLER, TIGHTENER (INC. 40)
-
400602-383 BEARING, CHAIN TIGHTENERBEARING, CHAIN TIGHTENER
-
410623-284 WASHERWASHER
-
428050-212 WASHERWASHER
-
430702-130 SPRING ASSY.SPRING ASSY.
-
440123-082 PIN, COTTERPIN, COTTER
-
451602-101 ADJUSTER, CHAINADJUSTER, CHAIN
-
460123-150 NUTNUT
-
478050-272 WASHERWASHER
-
480623-905 SEAL, MANUAL ADJUSTSEAL, MANUAL ADJUST
-
490623-293 PLUG, DROPCASEPLUG, DROPCASE
-
508050-247 WASHERWASHER
