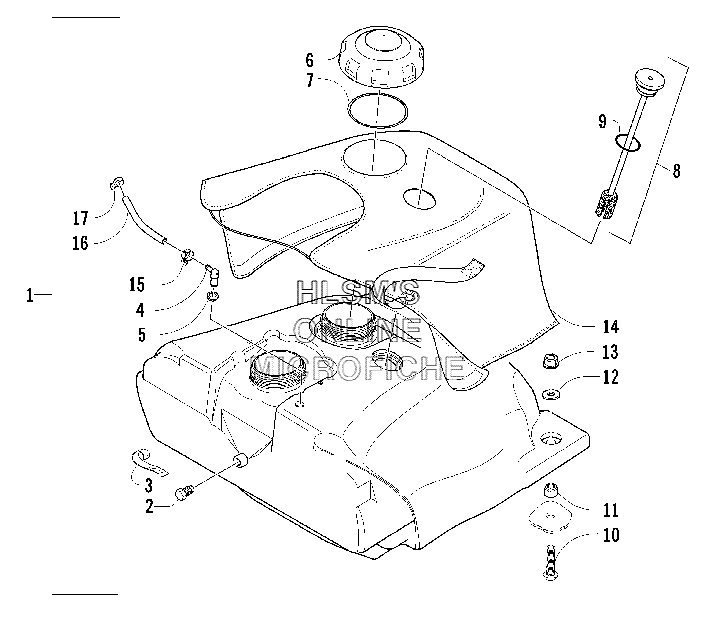

GAS TANK ASSY. для Arctic Cat Mountain Cat 800 EFI (Red 151) - 2004 года выпуска
-
№АртикулНазвание
-
10770-613 TANK, GAS (INC. 2, 11)TANK, GAS (INC. 2, 11)
-
20670-243 PLUG, TANKPLUG, TANK
-
30670-289 TAPE, TEFLONTAPE, TEFLON
-
41670-494 VENT, TANKVENT, TANK
-
51670-325 GROMMET, TANK VENTGROMMET, TANK VENT
-
61670-199 CAP, TANK (INC. 7)CAP, TANK (INC. 7)
-
71670-228 SEAL, TANK CAPSEAL, TANK CAP
-
81670-241 GAUGE, GAS W/SEAL (INC. 9)GAUGE, GAS W/SEAL (INC. 9)
-
90470-400 SEAL, GAS GAUGESEAL, GAS GAUGE
-
108017-581 SCREW, MACHINESCREW, MACHINE
-
111623-077 NUT, LOCKNUT, LOCK
-
128050-222 WASHERWASHER
-
138048-366 NUT, LOCKNUT, LOCK
-
140705-962 WRAP/PAD, TANKWRAP/PAD, TANK
-
150623-063 CLAMP, HOSECLAMP, HOSE
-
160610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
160610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
170623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
