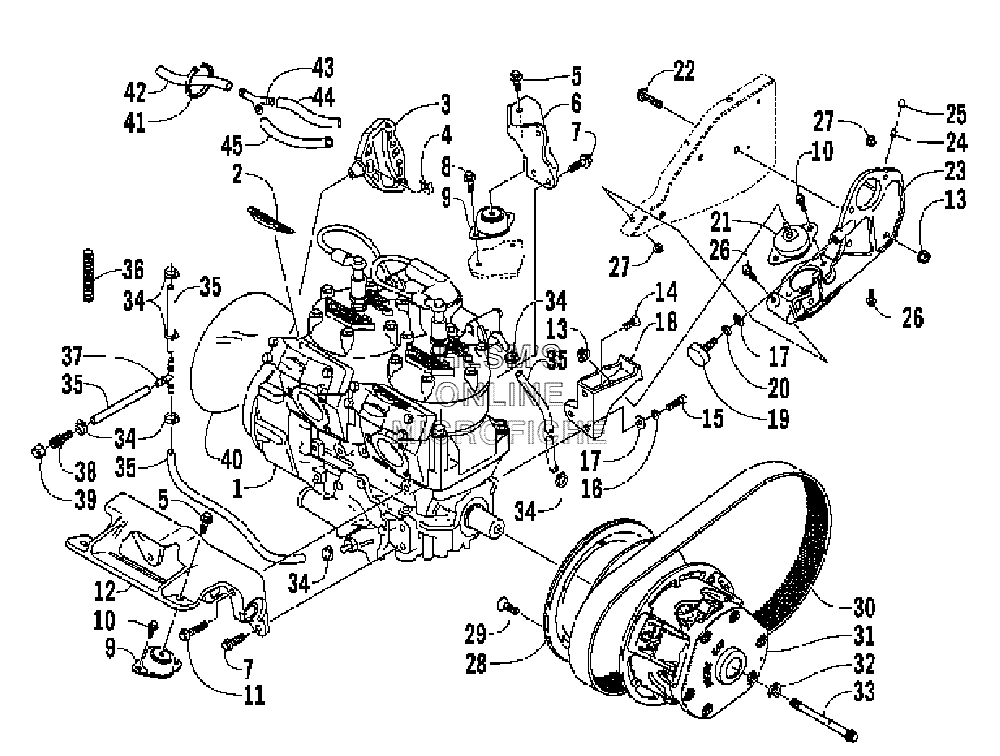

ENGINE AND RELATED PARTS для Arctic Cat Mountain Cat 900 EFI (Green 151) - 2004 года выпуска
-
№АртикулНазвание
-
10662-374 ENGINE, AB86L3 W/O EFI COMPONENTSENGINE, AB86L3 W/O EFI COMPONENTS
-
23611-967 DECAL, "APV"DECAL, "APV"
-
30636-363 HANDLE, RECOILHANDLE, RECOIL
-
40606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
58020-220 SCREW, CAPSCREW, CAP
-
60708-157 BRACKET, MOUNTING, ENGINE (RIGHT/REAR)BRACKET, MOUNTING, ENGINE (RIGHT/REAR)
-
78020-223 SCREW, CAPSCREW, CAP
-
88020-130 SCREW, CAPSCREW, CAP
-
90608-347 MOUNT, ENGINEMOUNT, ENGINE
-
100623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
118020-228 SCREW, CAPSCREW, CAP
-
120708-116 BRACKET, MOUNTING, ENGINE (FRONT)BRACKET, MOUNTING, ENGINE (FRONT)
-
138048-486 NUT, LOCKNUT, LOCK
-
140623-881 SCREW, MACHINESCREW, MACHINE
-
158005-674 SCREW, CAPSCREW, CAP
-
168051-277 WASHER, LOCKWASHER, LOCK
-
178050-272 WASHERWASHER
-
180708-158 BRACKET, MOUNTING, ENGINE (LEFT/REAR)BRACKET, MOUNTING, ENGINE (LEFT/REAR)
-
190608-355 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
200123-191 NUTNUT
-
210708-145 MOUNT, ENGINE, ASSY.MOUNT, ENGINE, ASSY.
-
228020-224 SCREW, CAPSCREW, CAP
-
230708-400 BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 24, 25)BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 24, 25)
-
240623-899 FITTING, GREASEFITTING, GREASE
-
250623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
268020-040 SCREW, CAPSCREW, CAP
-
278048-366 NUT, LOCKNUT, LOCK
-
280645-410 RING, CLUTCH DAMPERRING, CLUTCH DAMPER
-
291623-128 SCREW, MACHINESCREW, MACHINE
-
300627-020 BELT, DRIVEBELT, DRIVE
-
310725-387 CLUTCH, DRIVECLUTCH, DRIVE
-
320623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
330623-913 BOLT, CLUTCHBOLT, CLUTCH
-
340623-373 CLAMP, HOSECLAMP, HOSE
-
350610-076 HOSE, COOLANT (10 FT)HOSE, COOLANT (10 FT)
-
360619-776 CONDUIT, FLEXIBLE (5 FT)CONDUIT, FLEXIBLE (5 FT)
-
370670-235 T, FITTINGT, FITTING
-
380623-976 FITTING, ADAPTERFITTING, ADAPTER
-
391670-303 CAP, DRAINCAP, DRAIN
-
401670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
410123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
420610-535 HOSE, DRAIN, VEV (EXIT)HOSE, DRAIN, VEV (EXIT)
-
430670-875 Y, FITTINGY, FITTING
-
440610-364 HOSE, DRAIN, VEV (PTO)HOSE, DRAIN, VEV (PTO)
-
450610-363 HOSE, DRAIN, VEV (MAGNETO)HOSE, DRAIN, VEV (MAGNETO)
