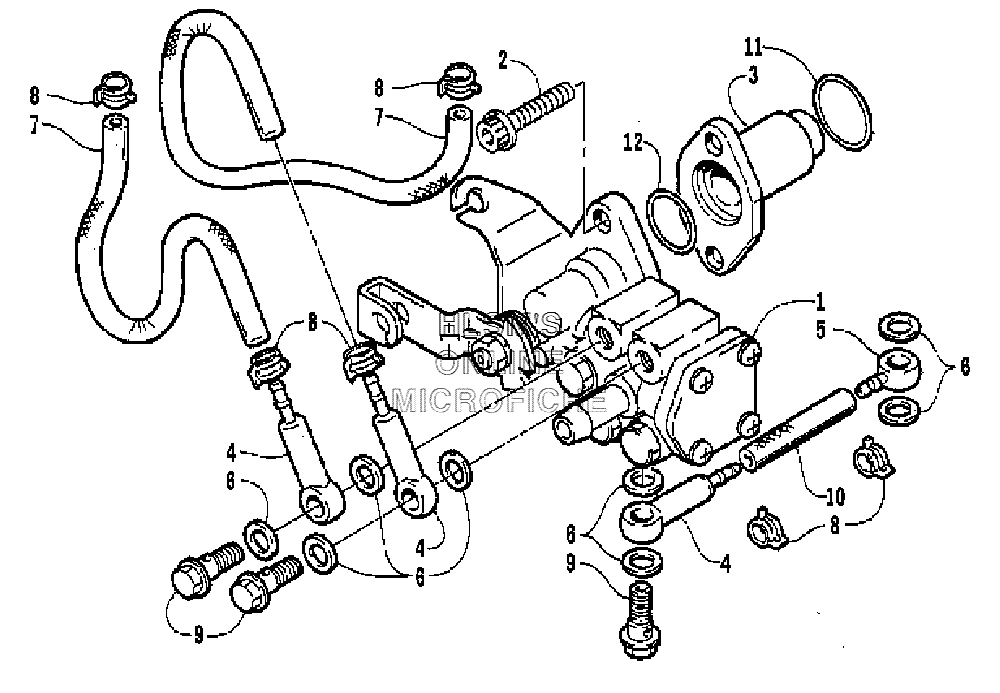

OIL PUMP для Arctic Cat Mountain Cat 900 EFI (Green 151) - 2004 года выпуска
-
№АртикулНазвание
-
13006-730 OIL PUMP ASSY.OIL PUMP ASSY.
-
23004-893 SCREW, OIL PUMPSCREW, OIL PUMP
-
33005-884 RETAINER, OIL PUMPRETAINER, OIL PUMP
-
43003-217 VALVE, CHECKVALVE, CHECK
-
53003-661 UNION, GEAR LUBEUNION, GEAR LUBE
-
63402-009 GASKET, CHECK VALVEGASKET, CHECK VALVE
-
73008-035 HOSE, OIL PUMPHOSE, OIL PUMP
-
83008-037 CLAMP, HOSECLAMP, HOSE
-
93004-346 BOLT, UNIONBOLT, UNION
-
103005-357 HOSE, OIL PUMPHOSE, OIL PUMP
-
113005-126 O-RINGO-RING
-
123008-030 O-RINGO-RING
