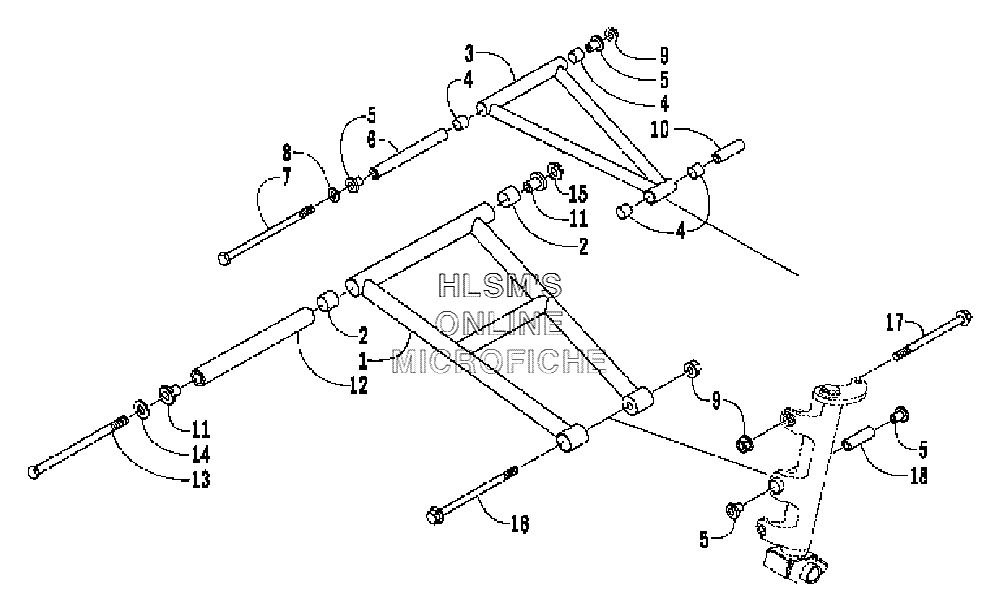

A-ARM ASSY. для Arctic Cat Mountain Cat 900 EFI (Red 151) - 2004 года выпуска
-
№АртикулНазвание
-
11703-456 ARM (LOWER) (INC. 2)ARM (LOWER) (INC. 2)
-
22603-196 BEARINGBEARING
-
31703-067 ARM (UPPER) (INC. 4)ARM (UPPER) (INC. 4)
-
41603-915 BEARINGBEARING
-
51603-244 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
60603-692 TUBE, AXLETUBE, AXLE
-
70623-509 SCREW, CAPSCREW, CAP
-
80623-664 WASHERWASHER
-
98048-486 NUT, LOCKNUT, LOCK
-
100603-864 TUBE, AXLETUBE, AXLE
-
111603-397 AXLE, NON, SERRATEDAXLE, NON, SERRATED
-
120603-693 TUBE, AXLETUBE, AXLE
-
130623-508 SCREW, CAPSCREW, CAP
-
140623-663 WASHERWASHER
-
158048-546 NUT, LOCKNUT, LOCK
-
168026-236 SCREW, CAPSCREW, CAP
-
178026-232 SCREW, CAPSCREW, CAP
-
180603-639 TUBE, AXLE, SPINDLETUBE, AXLE, SPINDLE
