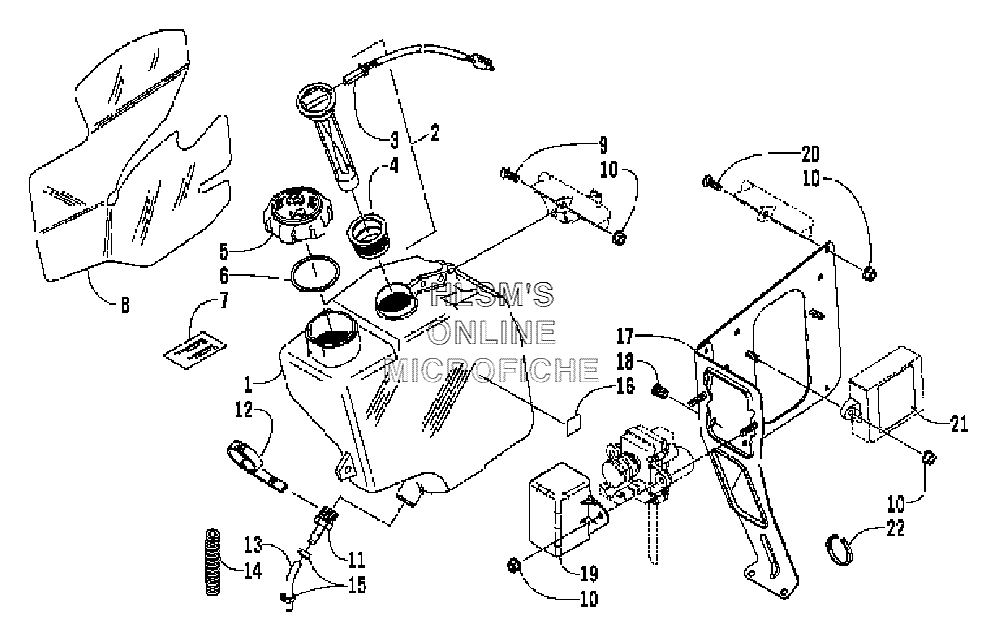

OIL TANK ASSY. для Arctic Cat Mountain Cat 900 EFI (Red 151) - 2004 года выпуска
-
№АртикулНазвание
-
11670-026 TANK, OILTANK, OIL
-
20609-503 SENSOR, LOW OIL, ASSY. (INC. 3, 4)SENSOR, LOW OIL, ASSY. (INC. 3, 4)
-
30609-518 SWITCH, OIL SENSOR W/HARNESSSWITCH, OIL SENSOR W/HARNESS
-
40609-237 SEAL, GROMMET, OIL SENSORSEAL, GROMMET, OIL SENSOR
-
51670-365 CAP, TANK (INC. 6)CAP, TANK (INC. 6)
-
60109-733 SEAL, TANK CAPSEAL, TANK CAP
-
74611-532 DECAL, TANKDECAL, TANK
-
81670-234 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
98017-581 SCREW, MACHINESCREW, MACHINE
-
108048-366 NUT, LOCKNUT, LOCK
-
110670-733 OUTLET, TANKOUTLET, TANK
-
120670-289 TAPE, TEFLONTAPE, TEFLON
-
136101-001 HOSE, OIL LINE (100 FT)HOSE, OIL LINE (100 FT)
-
136101-009 HOSE, OIL LINE (50 FT)HOSE, OIL LINE (50 FT)
-
140716-558 CONDUIT, FLEXIBLE (10 FT)CONDUIT, FLEXIBLE (10 FT)
-
150124-045 CLAMP, HOSECLAMP, HOSE
-
162606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
170770-639 PLATE, MOUNTING, ELECTRICAL COMPONENTS (INC. 18)PLATE, MOUNTING, ELECTRICAL COMPONENTS (INC. 18)
-
180623-582 INSERTINSERT
-
192606-129 COVER, SERVOMOTORCOVER, SERVOMOTOR
-
208017-577 SCREW, MACHINESCREW, MACHINE
-
213611-403 DECAL, FUEL DESIGNATIONDECAL, FUEL DESIGNATION
-
220123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
