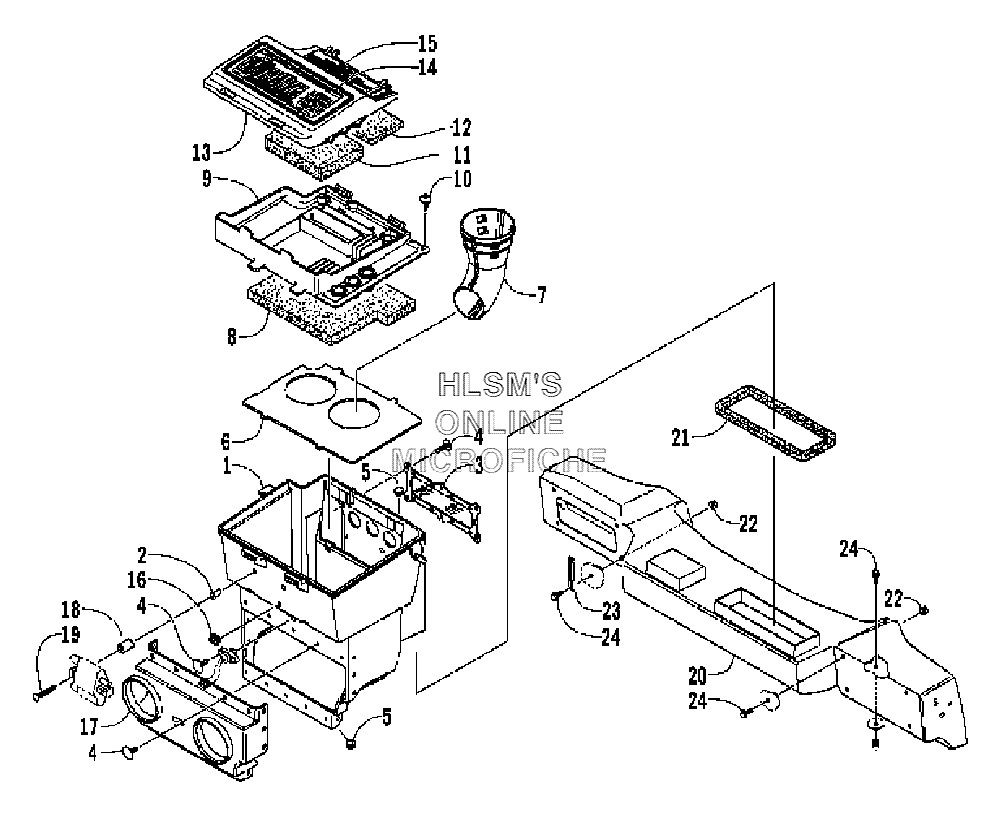

AIR SILENCER ASSY. для Arctic Cat Mountain Cat 900 EFI (Red 159) - 2004 года выпуска
-
№АртикулНазвание
-
10770-671 SILENCER, AIR, ASSY. (INC. 2, 3 AND SIX NO. 4)SILENCER, AIR, ASSY. (INC. 2, 3 AND SIX NO. 4)
-
21623-127 INSERTINSERT
-
31670-517 SCREEN, AIR SILENCERSCREEN, AIR SILENCER
-
40623-165 CLIP, RETAININGCLIP, RETAINING
-
51606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
61670-461 BAFFLE, AIR SILENCERBAFFLE, AIR SILENCER
-
70670-617 FUNNEL, AIR SILENCERFUNNEL, AIR SILENCER
-
80617-430 FOAM, AIR SILENCER, COVERFOAM, AIR SILENCER, COVER
-
91670-539 COVER, AIR SILENCERCOVER, AIR SILENCER
-
100623-727 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110617-439 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
120617-440 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
131670-425 COVER, TOOL TRAYCOVER, TOOL TRAY
-
145611-309 DECAL, CLUTCHINGDECAL, CLUTCHING
-
156611-009 DECAL, ECUDECAL, ECU
-
160623-403 CLAMP, PUSH, MOUNTCLAMP, PUSH, MOUNT
-
171670-256 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
181623-045 SPACERSPACER
-
198017-406 SCREW, MACHINESCREW, MACHINE
-
201670-480 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
210617-436 SEAL, AIR SILENCER PLENUMSEAL, AIR SILENCER PLENUM
-
228048-366 NUT, LOCKNUT, LOCK
-
233002-964 CLAMP, WIRECLAMP, WIRE
-
248020-039 SCREW, CAPSCREW, CAP
