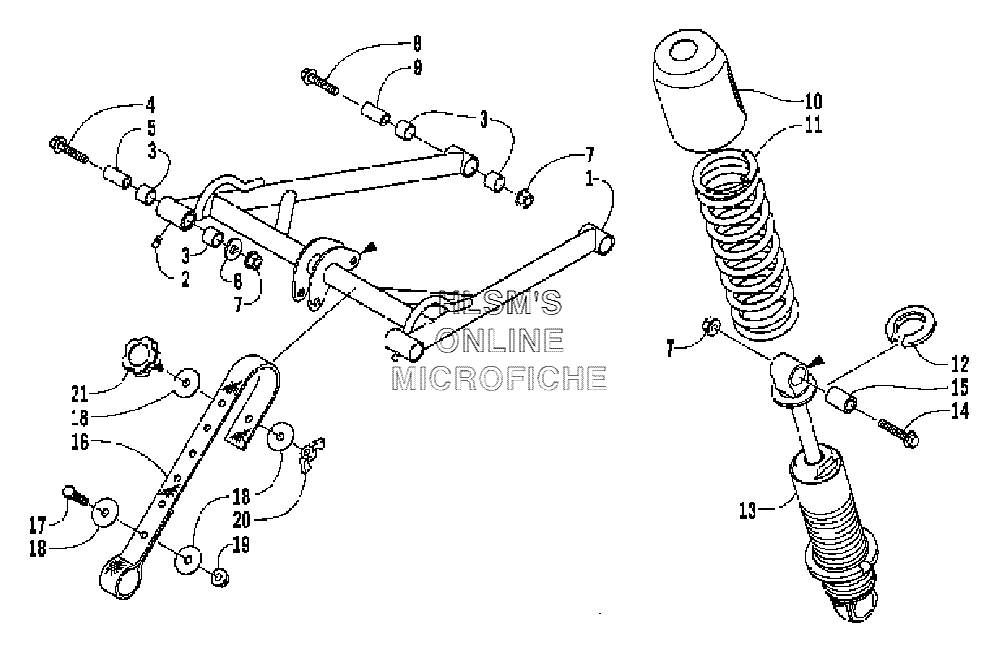

REAR SUSPENSION FRONT ARM ASSY. для Arctic Cat Mountain Cat 900 EFI (Red 159) - 2004 года выпуска
-
№АртикулНазвание
-
10704-919 ARM SUSPENSION (FRONT) (INC. 2?3)ARM SUSPENSION (FRONT) (INC. 2?3)
-
21623-010 FITTING, GREASE, SELF, TAPPINGFITTING, GREASE, SELF, TAPPING
-
30604-889 BUSHING ARM (FRONT)BUSHING ARM (FRONT)
-
48020-229 SCREW, CAPSCREW, CAP
-
51604-162 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
60114-197 WASHERWASHER
-
78048-486 NUT, LOCKNUT, LOCK
-
88020-228 SCREW, CAPSCREW, CAP
-
90104-629 SPACER ARM (FRONT)SPACER ARM (FRONT)
-
100604-590 COVER, SHOCKCOVER, SHOCK
-
110704-523 SPRING, COMPRESSIONSPRING, COMPRESSION
-
121603-890 RETAINER, SPRINGRETAINER, SPRING
-
131704-150 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
-
148020-226 SCREW, CAPSCREW, CAP
-
150603-030 AXLE, SERRATEDAXLE, SERRATED
-
162604-657 STRAP, LIMITERSTRAP, LIMITER
-
178002-042 SCREW, CAPSCREW, CAP
-
180623-184 WASHERWASHER
-
198048-366 NUT, LOCKNUT, LOCK
-
200623-325 NUT, WINGNUT, WING
-
211623-044 KNOB, ADJUSTERKNOB, ADJUSTER
