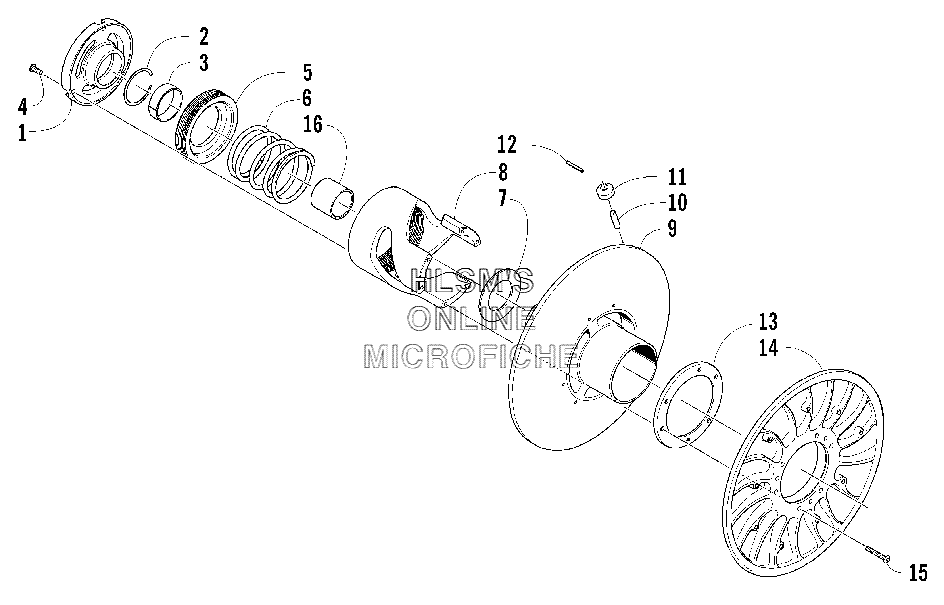

DRIVEN CLUTCH для Arctic Cat T660 Turbo Trail (Black) - 2004 года выпуска
-
№АртикулНазвание
-
-0726-166 DRIVEN CLUTCH ASSY.DRIVEN CLUTCH ASSY.
-
10748-595 COVER, TORQUE BRACKET (INC. 2, 3)COVER, TORQUE BRACKET (INC. 2, 3)
-
20648-433 RING, SNAPRING, SNAP
-
30648-009 BEARINGBEARING
-
48019-397 SCREW, MACHINESCREW, MACHINE
-
50648-439 ADJUSTER, SPRINGADJUSTER, SPRING
-
60648-662 SPRING, DRIVEN CLUTCHSPRING, DRIVEN CLUTCH
-
70648-437 SEAT, SPRINGSEAT, SPRING
-
80648-679 BRACKET, TORQUE 50°/36°BRACKET, TORQUE 50°/36°
-
90748-600 SHEAVE, STATIONARY (INC. 10, 12)SHEAVE, STATIONARY (INC. 10, 12)
-
100648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
110648-139 ROLLER, CAMROLLER, CAM
-
128070-224 PIN, SPRINGPIN, SPRING
-
130648-688 RETAINER, TORQUE BRACKETRETAINER, TORQUE BRACKET
-
140748-591 SHEAVE, MOVABLESHEAVE, MOVABLE
-
151623-258 SCREW, MACHINESCREW, MACHINE
-
160648-692 SPACERSPACER
