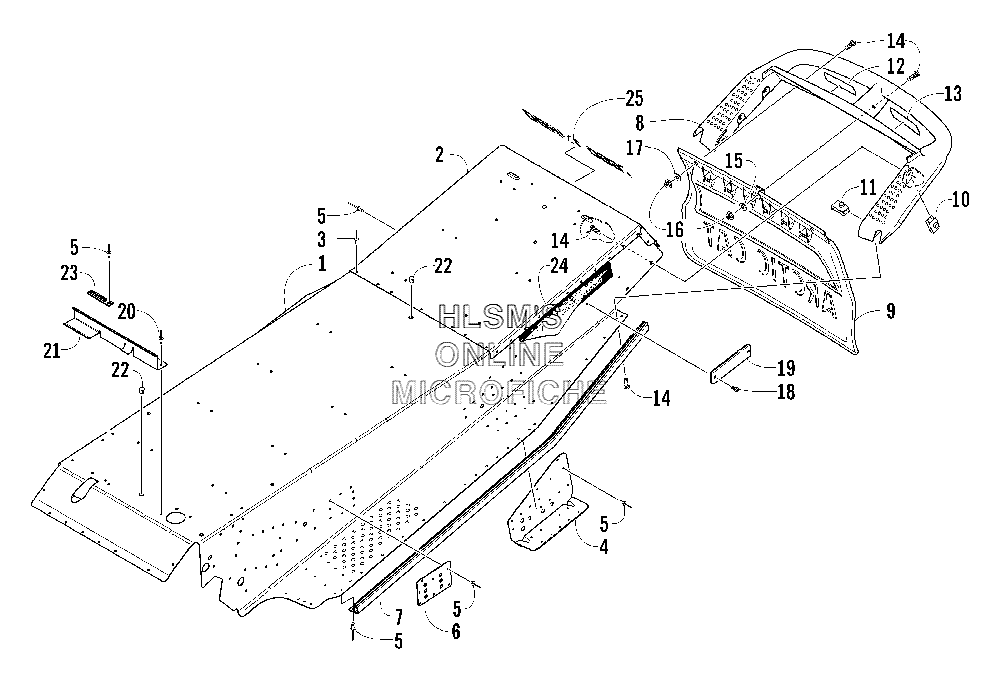

TUNNEL AND REAR BUMPER для Arctic Cat T660 Turbo Trail (Black) - 2004 года выпуска
-
№АртикулНазвание
-
11718-132 TUNNEL ASSY. (INC. 2, 5)TUNNEL ASSY. (INC. 2, 5)
-
21606-486 PLATE, END TUNNEL (REAR)PLATE, END TUNNEL (REAR)
-
38060-704 RIVETRIVET
-
38060-504 RIVETRIVET
-
41706-902 BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
-
41706-903 BRACKET, SUSPENSION MOUNTING (LEFT/REAR)BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
-
50123-418 RIVETRIVET
-
50623-072 RIVETRIVET
-
58060-506 RIVETRIVET
-
62706-116 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
71706-904 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
71706-905 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
81606-200 BUMPER (REAR)BUMPER (REAR)
-
91606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
100623-771 NUT, UNUT, U
-
110623-427 NUT, UNUT, U
-
125611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
135611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
148017-580 SCREW, MACHINESCREW, MACHINE
-
158050-217 WASHERWASHER
-
168048-366 NUT, LOCKNUT, LOCK
-
170623-184 WASHERWASHER
-
180623-269 CLIP, RETAININGCLIP, RETAINING
-
190606-029 REFLECTOR (REAR/RED)REFLECTOR (REAR/RED)
-
200623-166 RIVETRIVET
-
210707-704 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
220623-562 PLUG, HOLEPLUG, HOLE
-
233002-964 CLAMP, WIRECLAMP, WIRE
-
245611-766 DECAL, "ARCTIC CAT", TUNNEL (RIGHT)DECAL, "ARCTIC CAT", TUNNEL (RIGHT)
-
245611-767 DECAL, "ARCTIC CAT", TUNNEL (LEFT)DECAL, "ARCTIC CAT", TUNNEL (LEFT)
-
255611-617 EMBLEM, TUNNELEMBLEM, TUNNEL
