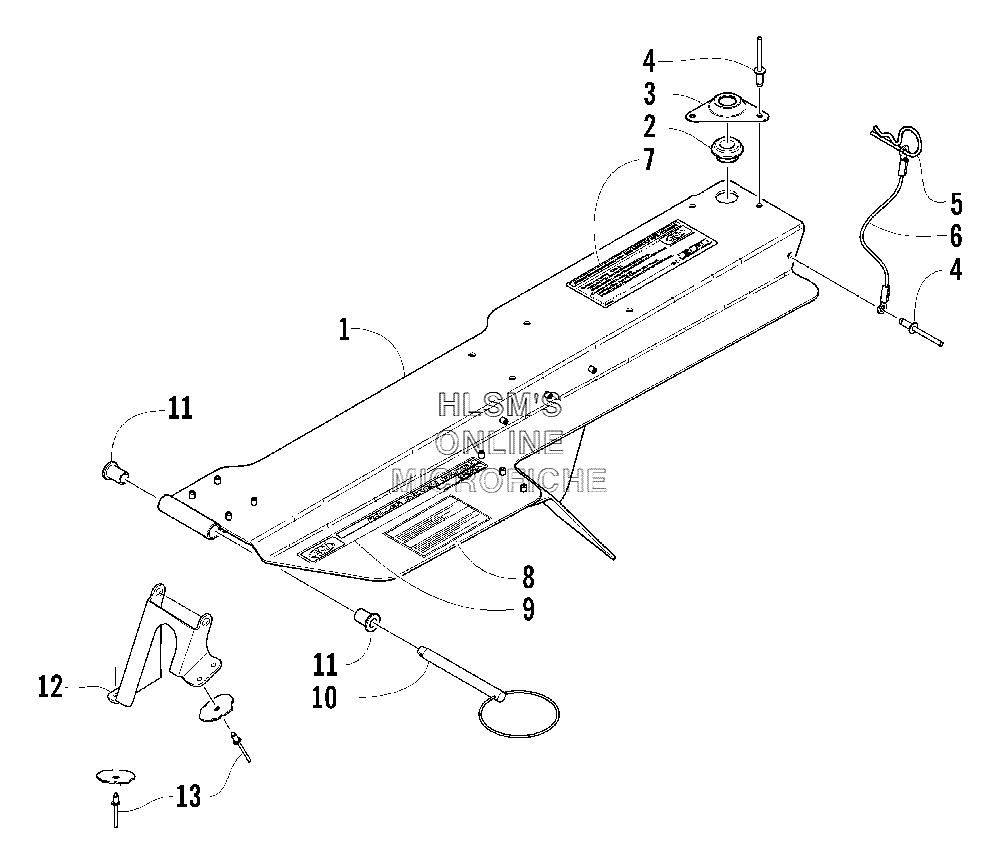

BELT GUARD ASSY. для Arctic Cat T660 Turbo Trail Taupe - 2004 года выпуска
-
№АртикулНазвание
-
10707-574 BELT GUARD ASSY. (INC. 2, 6)BELT GUARD ASSY. (INC. 2, 6)
-
20607-549 BUSHING, BELT GUARDBUSHING, BELT GUARD
-
30607-550 PLATE, BUSHING, BELT GUARDPLATE, BUSHING, BELT GUARD
-
48060-504 RIVETRIVET
-
50605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
60607-447 CABLECABLE
-
75611-864 DECAL, CLUTCHINGDECAL, CLUTCHING
-
81611-565 DECAL, WARNING, BELT GUARDDECAL, WARNING, BELT GUARD
-
93611-969 DECAL, "ACT, ROLLER DRIVEN CLUTCH"DECAL, "ACT, ROLLER DRIVEN CLUTCH"
-
101623-012 PIN, BELT GUARDPIN, BELT GUARD
-
110607-094 INSERT, HINGEINSERT, HINGE
-
120707-707 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
138061-508 RIVETRIVET
