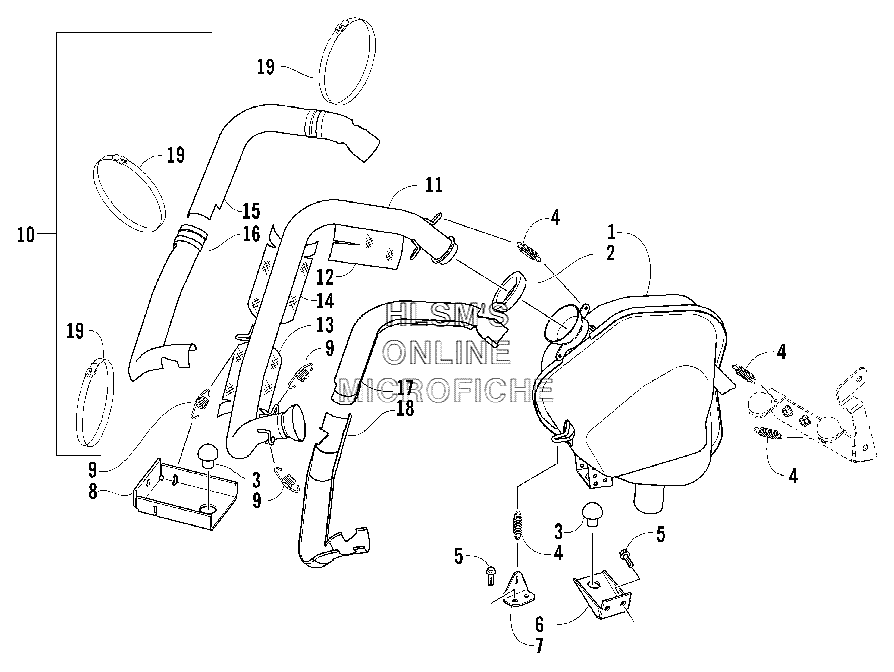

EXHAUST ASSY. для Arctic Cat T660 Turbo Trail Taupe - 2004 года выпуска
-
№АртикулНазвание
-
11712-031 RESONATORRESONATOR
-
21612-323 GASKET, EXHAUSTGASKET, EXHAUST
-
30612-111 BUMPER, RUBBERBUMPER, RUBBER
-
40612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
58020-039 SCREW, CAPSCREW, CAP
-
61712-038 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
71612-763 BRACKET, SPRING RETAININGBRACKET, SPRING RETAINING
-
81712-046 BRACKET, MOUNTING, EXHAUST PIPEBRACKET, MOUNTING, EXHAUST PIPE
-
90612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
101712-048 PIPE, EXHAUST, ASSY. (INC. 11, 19)PIPE, EXHAUST, ASSY. (INC. 11, 19)
-
111712-006 PIPE, EXHAUSTPIPE, EXHAUST
-
121612-818 PACKING (RIGHT)PACKING (RIGHT)
-
131612-819 PACKING (LEFT)PACKING (LEFT)
-
141612-820 PACKING (CENTER)PACKING (CENTER)
-
151612-768 COVER, EXHAUST PIPE (UPPER/RIGHT)COVER, EXHAUST PIPE (UPPER/RIGHT)
-
161612-769 COVER, EXHAUST PIPE (UPPER/LEFT)COVER, EXHAUST PIPE (UPPER/LEFT)
-
171612-770 COVER, EXHAUST PIPE (LOWER/RIGHT)COVER, EXHAUST PIPE (LOWER/RIGHT)
-
181612-771 COVER, EXHAUST PIPE (LOWER/LEFT)COVER, EXHAUST PIPE (LOWER/LEFT)
-
191612-645 TIE, BAND, 33 IN.TIE, BAND, 33 IN.
