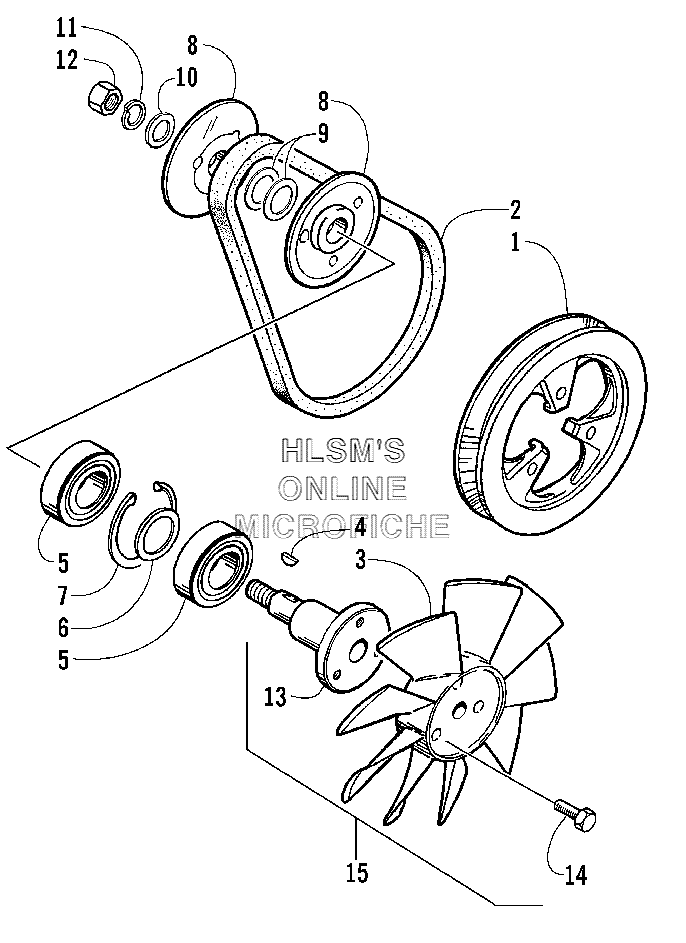

COOLING FAN для Arctic Cat Z 370 (Green) - 2004 года выпуска
-
№АртикулНазвание
-
13005-702 PULLEY, DRIVE (LOW SPEED)PULLEY, DRIVE (LOW SPEED)
-
13005-743 PULLEY, DRIVE (HIGH SPEED)PULLEY, DRIVE (HIGH SPEED)
-
23002-854 BELT (LOW SPEED)BELT (LOW SPEED)
-
23002-156 BELT (HIGH SPEED)BELT (HIGH SPEED)
-
33003-008 FANFAN
-
43000-266 KEYKEY
-
53002-750 BEARINGBEARING
-
63005-374 SPACERSPACER
-
73004-479 CIRCLIPCIRCLIP
-
83002-782 PULLEY HALFPULLEY HALF
-
93002-728 SHIMSHIM
-
103004-571 WASHERWASHER
-
113004-362 WASHER, LOCKWASHER, LOCK
-
123004-989 NUTNUT
-
133003-009 SHAFTSHAFT
-
143005-180 BOLTBOLT
-
153003-285 FAN ASSY., COOLING (INC. 3 AND 13, 14)FAN ASSY., COOLING (INC. 3 AND 13, 14)
