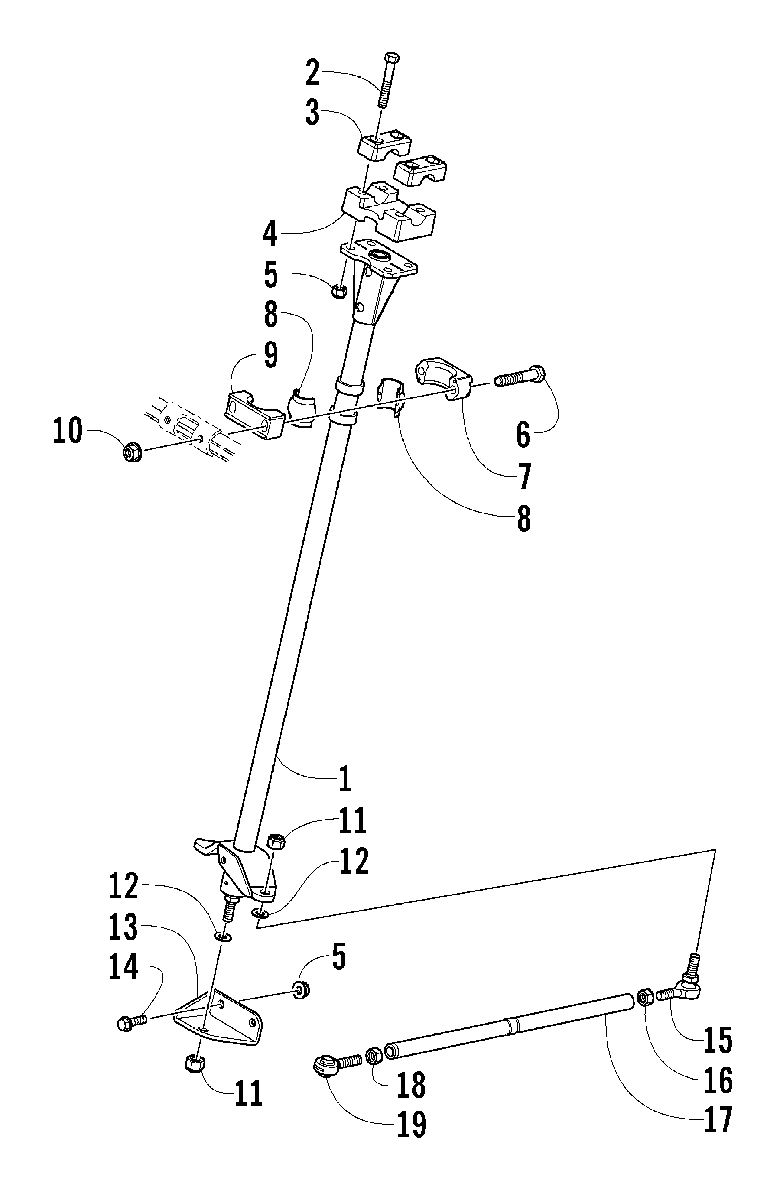

STEERING POST ASSY. для Arctic Cat Z 370 (Green) - 2004 года выпуска
-
№АртикулНазвание
-
10705-837 POST, STEERINGPOST, STEERING
-
28002-137 SCREW, CAPSCREW, CAP
-
30605-506 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
40605-507 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
58048-426 NUT, LOCKNUT, LOCK
-
60623-814 SCREW, CAPSCREW, CAP
-
70605-406 CAP, BEARING HOUSINGCAP, BEARING HOUSING
-
80405-020 BEARING, HALFBEARING, HALF
-
90605-147 HOUSING, BEARINGHOUSING, BEARING
-
108048-366 NUT, LOCKNUT, LOCK
-
110623-025 NUT, LOCKNUT, LOCK
-
120623-044 WASHERWASHER
-
130705-407 PLATE, BACKINGPLATE, BACKING
-
148020-130 SCREW, CAPSCREW, CAP
-
150605-423 BALL JOINT, STEERING (LEFT)BALL JOINT, STEERING (LEFT)
-
160123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
170605-626 TUBE, TIE RODTUBE, TIE ROD
-
180623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
190605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
