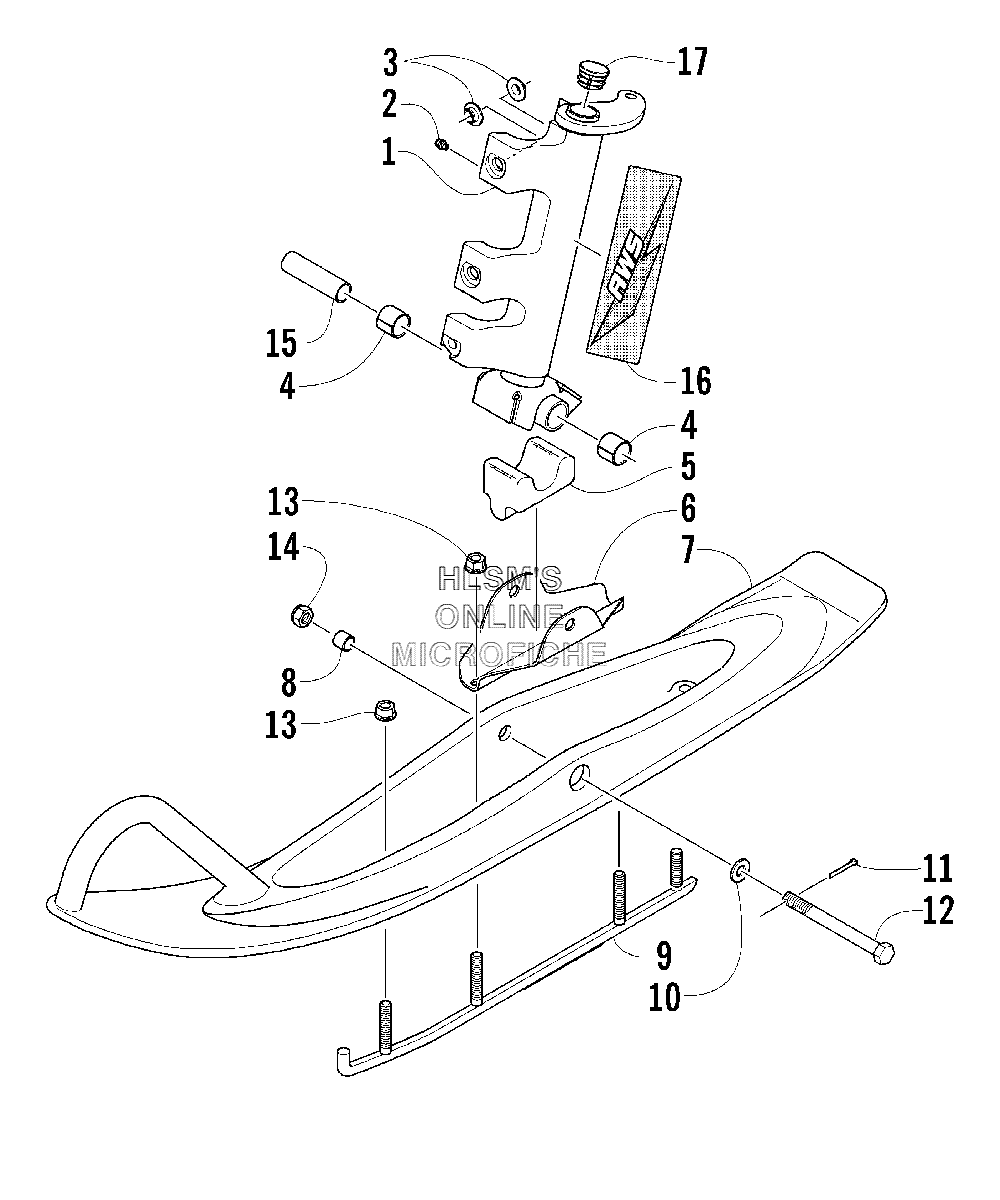

SKI AND SPINDLE ASSY. для Arctic Cat Z 370 LX (Green) - 2004 года выпуска
-
№АртикулНазвание
-
10703-898 SPINDLE, STEERING (RIGHT) (INC. 2, 4)SPINDLE, STEERING (RIGHT) (INC. 2, 4)
-
10703-899 SPINDLE, STEERING (LEFT) (INC. 2, 4)SPINDLE, STEERING (LEFT) (INC. 2, 4)
-
20623-010 FITTING, GREASEFITTING, GREASE
-
30603-647 INSERT, SPINDLEINSERT, SPINDLE
-
40603-158 BEARINGBEARING
-
51603-257 DAMPER, SKIDAMPER, SKI
-
61703-082 SADDLE, SKISADDLE, SKI
-
71603-476 SKI (INC. 8)SKI (INC. 8)
-
81603-258 INSERT, SKIINSERT, SKI
-
90703-623 WEARBARWEARBAR
-
108050-307 WASHERWASHER
-
110123-458 PIN, COTTERPIN, COTTER
-
120623-776 SCREW, CAPSCREW, CAP
-
138048-486 NUT, LOCKNUT, LOCK
-
140123-296 NUT, LOCKNUT, LOCK
-
150603-034 AXLE, SPINDLEAXLE, SPINDLE
-
165611-234 DECAL, "AWS", SPINDLE (RIGHT)DECAL, "AWS", SPINDLE (RIGHT)
-
165611-235 DECAL, "AWS", SPINDLE (LEFT)DECAL, "AWS", SPINDLE (LEFT)
-
170623-831 CAP, SPINDLECAP, SPINDLE
