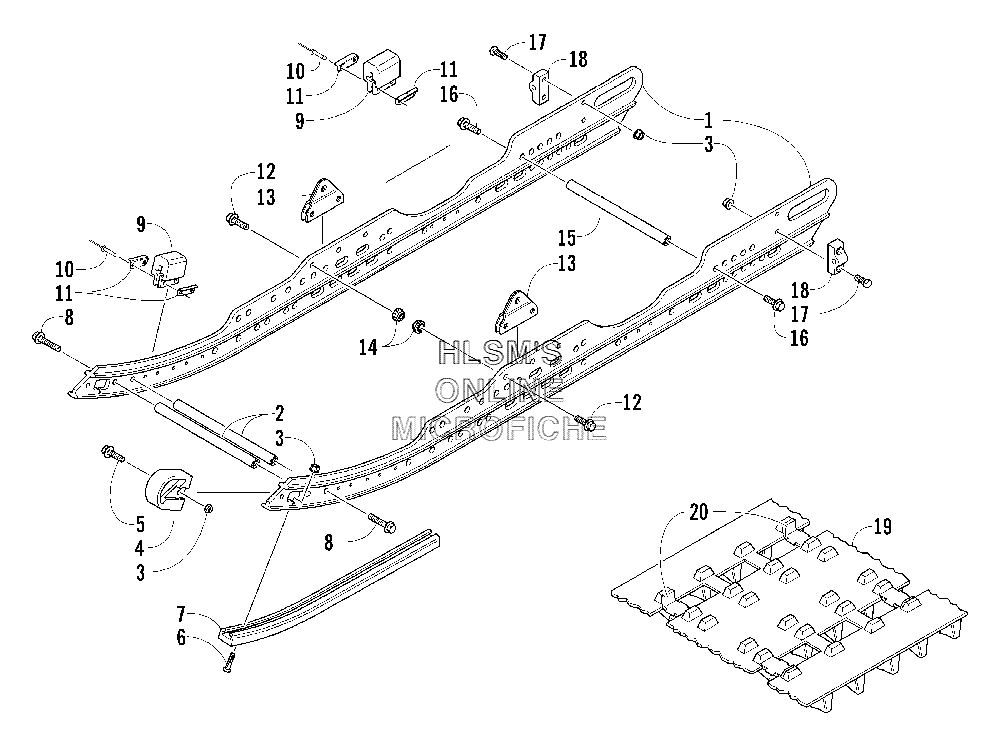

SLIDE RAIL AND TRACK ASSY. для Arctic Cat Z 370 LX (Green) - 2004 года выпуска
-
№АртикулНазвание
-
-7996-909 COMPLETE SKID FRAME ASSY.COMPLETE SKID FRAME ASSY.
-
11604-598 RAIL, FORMEDRAIL, FORMED
-
20604-426 SUPPORT, RAILSUPPORT, RAIL
-
38047-366 NUT, LOCKNUT, LOCK
-
41604-137 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
58020-042 SCREW, CAPSCREW, CAP
-
60123-859 SCREW, MACHINESCREW, MACHINE
-
70604-640 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
88020-134 SCREW, CAPSCREW, CAP
-
90604-918 PAD, SHOCKPAD, SHOCK
-
108060-633 RIVETRIVET
-
110604-967 BRACKET, RETAININGBRACKET, RETAINING
-
128020-131 SCREW, CAPSCREW, CAP
-
130704-395 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
148048-426 NUT, LOCKNUT, LOCK
-
150604-930 AXLE, ALUMINUMAXLE, ALUMINUM
-
168020-223 SCREW, CAPSCREW, CAP
-
178002-042 SCREW, CAPSCREW, CAP
-
180704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
190602-868 TRACK ASSY. (INC. 20)TRACK ASSY. (INC. 20)
-
200602-488 CLIP, WEAR W/GUIDECLIP, WEAR W/GUIDE
