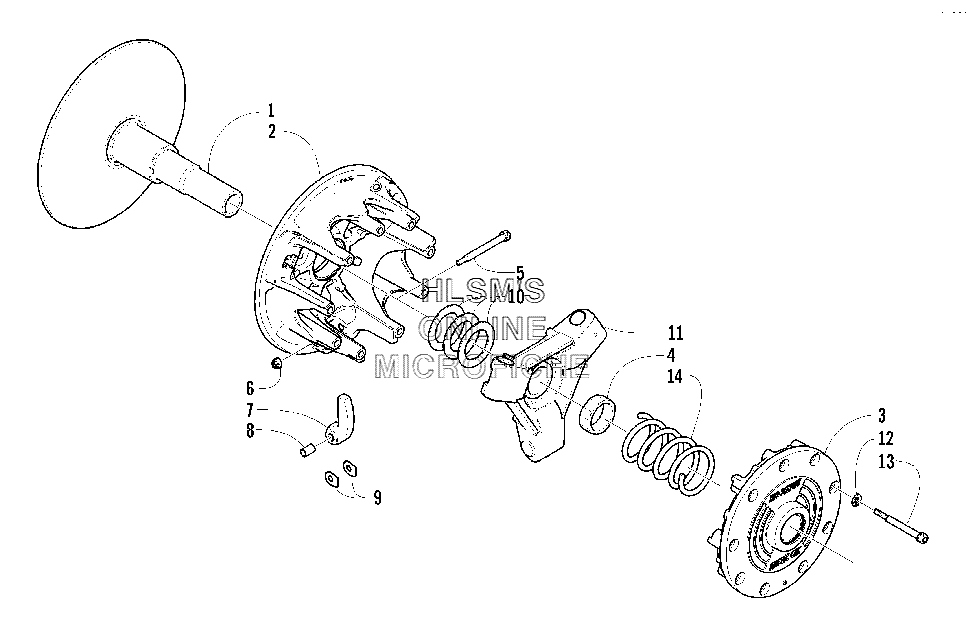

DRIVE CLUTCH для Arctic Cat Z 370 (Red) - 2004 года выпуска
-
№АртикулНазвание
-
-0725-344 CLUTCH, DRIVECLUTCH, DRIVE
-
-0746-103 CLUTCH, DRIVE, UNCALIBRATEDCLUTCH, DRIVE, UNCALIBRATED
-
-1639-030 KIT, CAM ARM (INC. 5, 6, 8, AND 9)KIT, CAM ARM (INC. 5, 6, 8, AND 9)
-
10646-325 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-074 SHEAVE, MOVABLESHEAVE, MOVABLE
-
30746-086 COVERCOVER
-
40646-140 NUTNUT
-
50646-295 PIN, CAM ARMPIN, CAM ARM
-
60623-392 NUT, LOCKNUT, LOCK
-
70746-502 ARM, CAM (INC. 8)ARM, CAM (INC. 8)
-
70746-602 ARM, CAM (INC. 8/OVER 5, 000 FT ALT.)ARM, CAM (INC. 8/OVER 5, 000 FT ALT.)
-
80646-160 BEARING, CAM ARMBEARING, CAM ARM
-
90646-101 WASHER, CAM ARMWASHER, CAM ARM
-
100646-265 WASHER, SPACERWASHER, SPACER
-
110746-118 SPIDER ASSY.SPIDER ASSY.
-
128051-212 WASHER, LOCKWASHER, LOCK
-
130623-596 SCREW, MACHINESCREW, MACHINE
-
140646-147 SPRING, DRIVE CLUTCH (YELLOW/GREEN)SPRING, DRIVE CLUTCH (YELLOW/GREEN)
