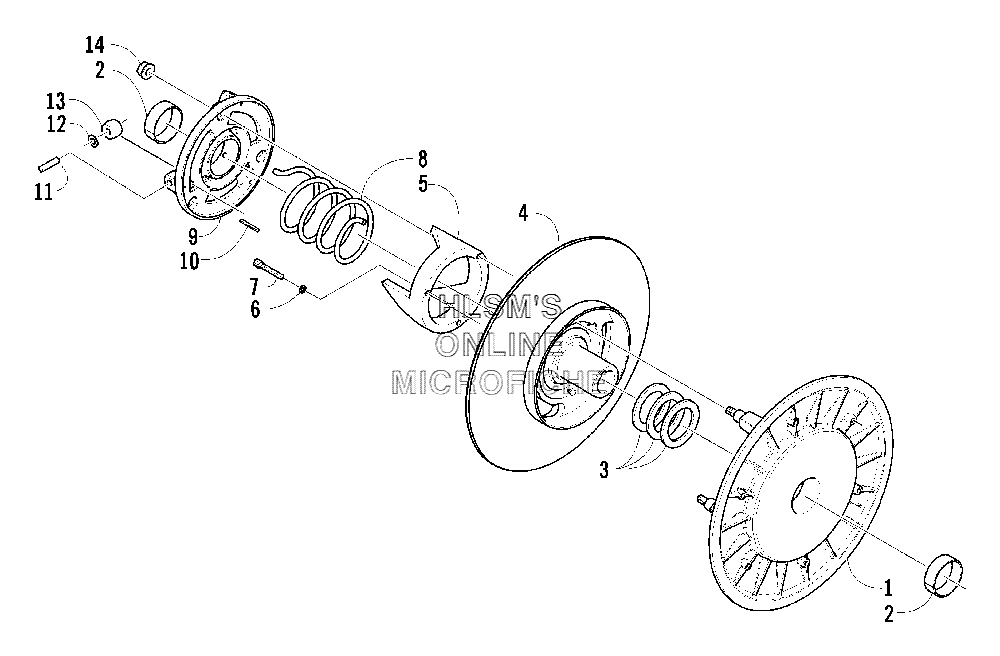

DRIVEN CLUTCH для Arctic Cat Z 370 (Red) - 2004 года выпуска
-
№АртикулНазвание
-
-0726-160 CLUTCH, DRIVENCLUTCH, DRIVEN
-
10748-023 SHEAVE, MOVABLE (INC. ONE NO. 2)SHEAVE, MOVABLE (INC. ONE NO. 2)
-
20648-009 BEARINGBEARING
-
30148-198 WASHER, THRUST: 0.030 IN.WASHER, THRUST: 0.030 IN.
-
30148-199 WASHER, THRUST: 0.060 IN.WASHER, THRUST: 0.060 IN.
-
40748-021 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
50648-002 BRACKET, TORQUE, 53°BRACKET, TORQUE, 53°
-
50648-014 BRACKET, TORQUE, 49° (OVER 9, 000 FT ALT.)BRACKET, TORQUE, 49° (OVER 9, 000 FT ALT.)
-
68051-152 WASHER, LOCKWASHER, LOCK
-
78005-404 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
80648-012 SPRING, DRIVEN CLUTCH (BLUE)SPRING, DRIVEN CLUTCH (BLUE)
-
80148-227 SPRING, DRIVEN CLUTCH (YELLOW) (OVER 5, 000 FT ALT.)SPRING, DRIVEN CLUTCH (YELLOW) (OVER 5, 000 FT ALT.)
-
90748-018 PLATE, ROLLER, ASSY.PLATE, ROLLER, ASSY.
-
108070-224 PIN, SPRINGPIN, SPRING
-
110648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
120648-082 WASHER, THRUST, CAM ROLLERWASHER, THRUST, CAM ROLLER
-
130648-079 ROLLER, CAMROLLER, CAM
-
148048-426 NUT, LOCKNUT, LOCK
