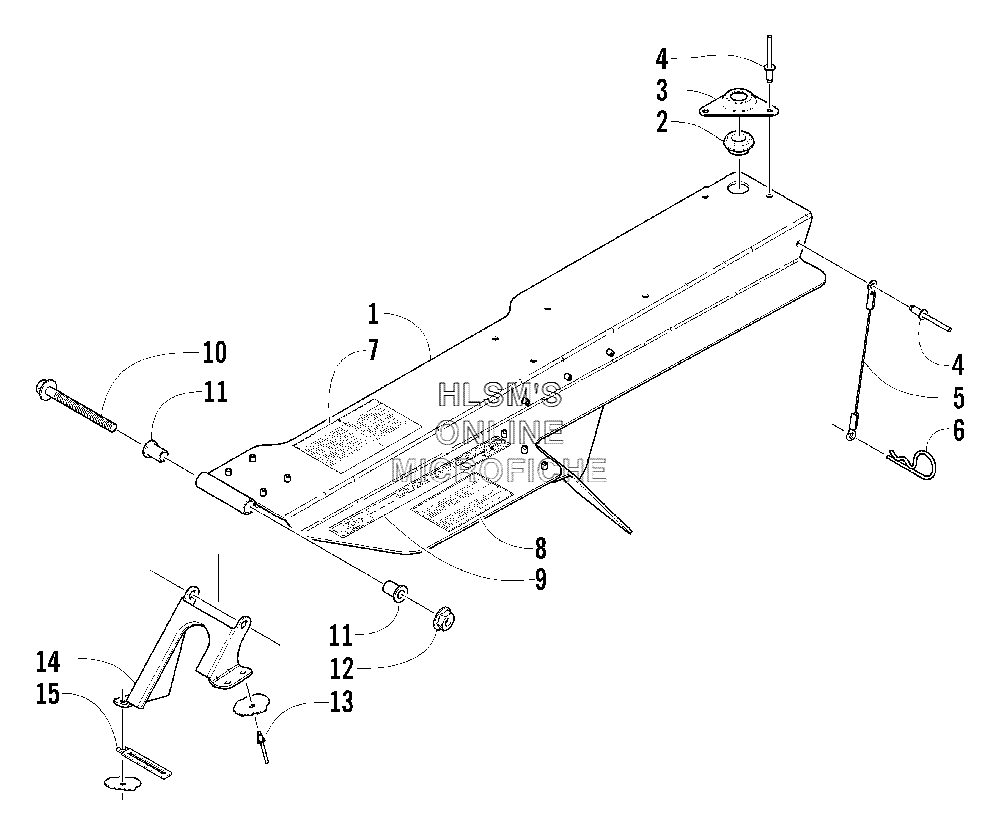

BELT GUARD ASSY. для Arctic Cat Z 570 (Green) - 2004 года выпуска
-
№АртикулНазвание
-
10707-574 BELT GUARD ASSY. (INC. 2, 6)BELT GUARD ASSY. (INC. 2, 6)
-
20607-549 BUSHING, BELT GUARDBUSHING, BELT GUARD
-
30607-550 PLATE, BUSHING, BELT GUARDPLATE, BUSHING, BELT GUARD
-
48060-504 RIVETRIVET
-
50607-447 CABLECABLE
-
60605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
71611-582 DECAL, CAUTION, JETTING/STORAGEDECAL, CAUTION, JETTING/STORAGE
-
81611-565 DECAL, WARNING, BELT GUARDDECAL, WARNING, BELT GUARD
-
93611-969 DECAL, "ACT, ROLLER DRIVEN CLUTCH"DECAL, "ACT, ROLLER DRIVEN CLUTCH"
-
108020-050 SCREW, CAPSCREW, CAP
-
110607-094 INSERT, HINGEINSERT, HINGE
-
128048-366 NUT, LOCKNUT, LOCK
-
138061-508 RIVETRIVET
-
140707-707 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
153002-964 CLAMP, WIRECLAMP, WIRE
