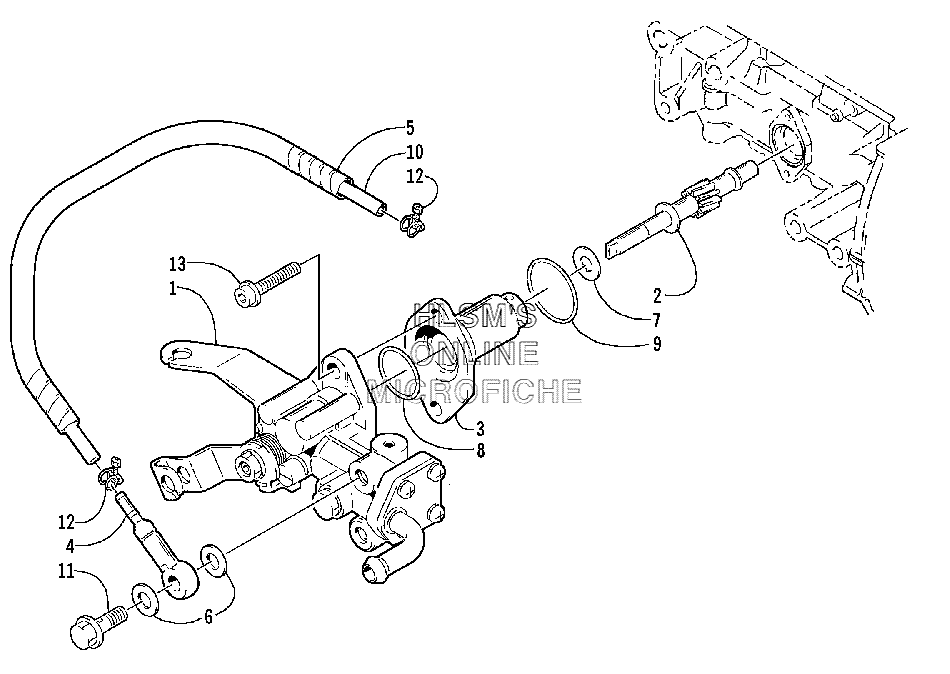

OIL PUMP для Arctic Cat Z 570 (Green) - 2004 года выпуска
-
№АртикулНазвание
-
13006-015 OIL PUMP ASSY.OIL PUMP ASSY.
-
23002-770 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
33003-749 RETAINER, OIL PUMPRETAINER, OIL PUMP
-
43005-224 VALVE, CHECKVALVE, CHECK
-
53005-032 PROTECTORPROTECTOR
-
63402-009 GASKETGASKET
-
73002-749 SHIMSHIM
-
83008-030 O-RINGO-RING
-
93005-126 O-RINGO-RING
-
103005-225 HOSE, OIL PUMPHOSE, OIL PUMP
-
113004-346 BOLT, UNIONBOLT, UNION
-
123003-218 CLAMP, HOSECLAMP, HOSE
-
133006-085 BOLTBOLT
