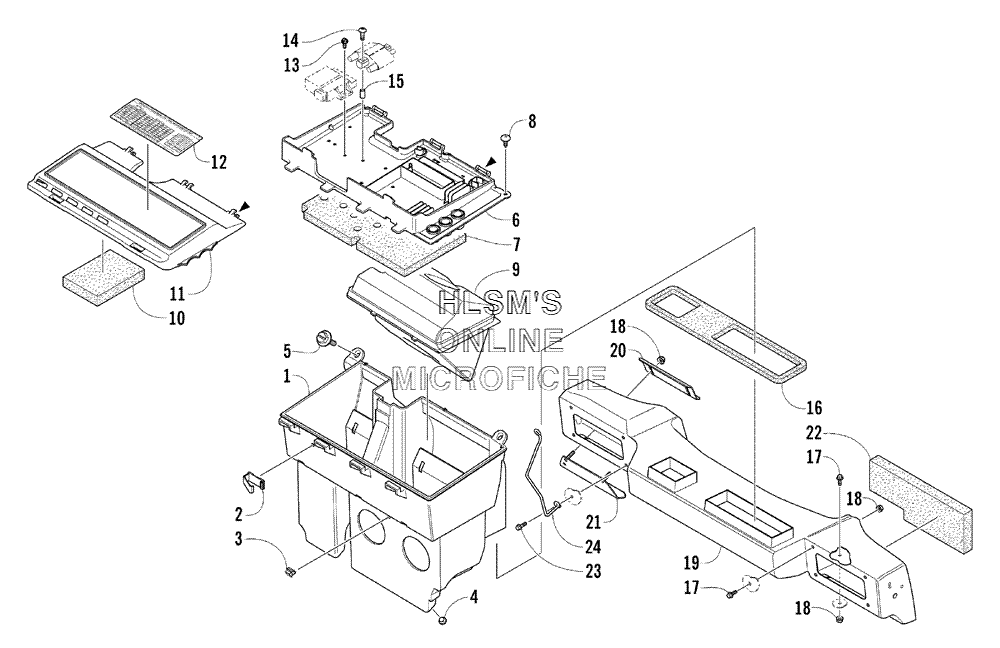

AIR SILENCER ASSY. для Arctic Cat Z 570 LX (Red) - 2004 года выпуска
-
№АртикулНазвание
-
10770-579 SILENCER, AIR, ASSY.SILENCER, AIR, ASSY.
-
20623-792 CLIP, WIRECLIP, WIRE
-
30623-403 CLAMP, PUSH, MOUNTCLAMP, PUSH, MOUNT
-
41606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
50623-780 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
61670-197 COVER, AIR SILENCERCOVER, AIR SILENCER
-
70617-393 FOAM, COVER, AIR SILENCERFOAM, COVER, AIR SILENCER
-
80623-727 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
91670-061 RESONATOR, Q, WAVERESONATOR, Q, WAVE
-
100617-411 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
111670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
125611-544 DECAL, JET CHARTDECAL, JET CHART
-
130623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
148017-406 SCREW, MACHINESCREW, MACHINE
-
150107-630 SPACERSPACER
-
160617-245 SEAL, PLENUM/AIR SILENCERSEAL, PLENUM/AIR SILENCER
-
178020-039 SCREW, CAPSCREW, CAP
-
188048-366 NUT, LOCKNUT, LOCK
-
191670-327 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
202606-095 PLATE, BACKINGPLATE, BACKING
-
211706-899 PLATE, ADJUSTINGPLATE, ADJUSTING
-
220617-270 FOAM, PLENUM, INTAKEFOAM, PLENUM, INTAKE
-
238020-040 SCREW, CAPSCREW, CAP
-
240707-705 BRACKET, GUARD, HARNESS/ROPEBRACKET, GUARD, HARNESS/ROPE
