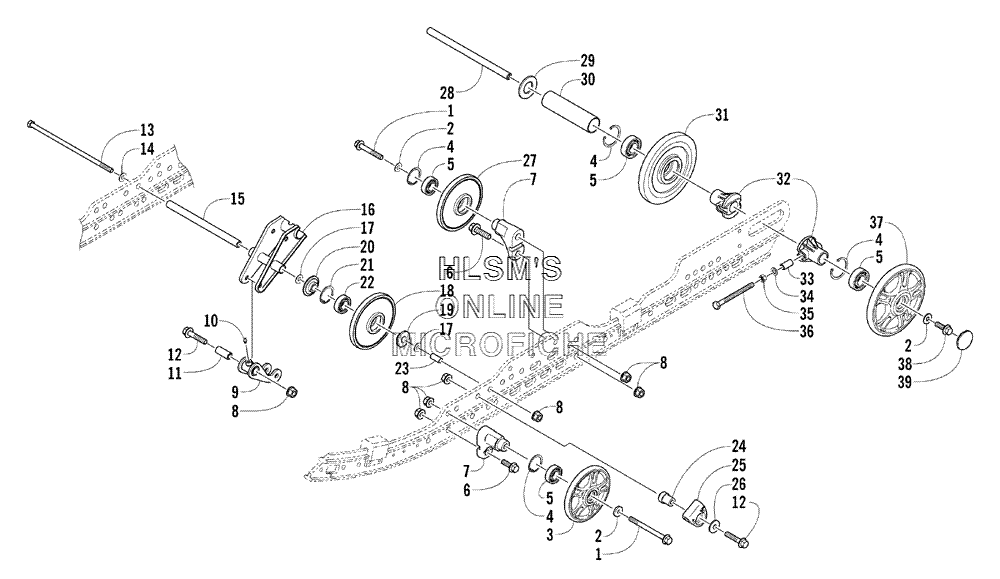

IDLER WHEEL ASSY. для Arctic Cat Z 570 LX (Red) - 2004 года выпуска
-
№АртикулНазвание
-
18020-232 SCREW, CAPSCREW, CAP
-
20623-664 WASHERWASHER
-
32604-263 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
40623-946 RING, RETAININGRING, RETAINING
-
51604-847 BEARINGBEARING
-
68020-224 SCREW, CAPSCREW, CAP
-
72604-579 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
88048-486 NUT, LOCKNUT, LOCK
-
90704-606 PIVOT REAR SHOCK (INC. 10)PIVOT REAR SHOCK (INC. 10)
-
100623-922 FITTING, GREASEFITTING, GREASE
-
111604-329 AXLE, SHOCK PIVOTAXLE, SHOCK PIVOT
-
128020-228 SCREW, CAPSCREW, CAP
-
130623-907 SCREW, CAPSCREW, CAP
-
140623-044 WASHERWASHER
-
151604-209 AXLE, INNERAXLE, INNER
-
160704-396 BRACKET, MOUNTING ARM FRONT SHOCKBRACKET, MOUNTING ARM FRONT SHOCK
-
170623-675 WASHERWASHER
-
181604-684 WHEEL, IDLER (INC. 19, 22)WHEEL, IDLER (INC. 19, 22)
-
191604-773 INSERT, WHEEL, OUTSIDEINSERT, WHEEL, OUTSIDE
-
201604-772 INSERT, WHEEL, INSIDEINSERT, WHEEL, INSIDE
-
210123-798 RING, RETAININGRING, RETAINING
-
220107-598 BEARINGBEARING
-
231604-213 SPACERSPACER
-
242604-600 BLOCK, SLIDEBLOCK, SLIDE
-
252604-516 SLIDE, SPRINGSLIDE, SPRING
-
268050-282 WASHERWASHER
-
271604-837 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
282604-283 AXLE WHEEL (REAR)AXLE WHEEL (REAR)
-
290623-921 WASHERWASHER
-
301604-940 SPACER WHEEL (REAR)SPACER WHEEL (REAR)
-
311604-838 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
322604-260 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
330704-854 SPACERSPACER
-
348051-277 WASHER, LOCKWASHER, LOCK
-
358042-486 NUTNUT
-
360623-123 SCREW, CAPSCREW, CAP
-
372604-264 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
388020-223 SCREW, CAPSCREW, CAP
-
391604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
