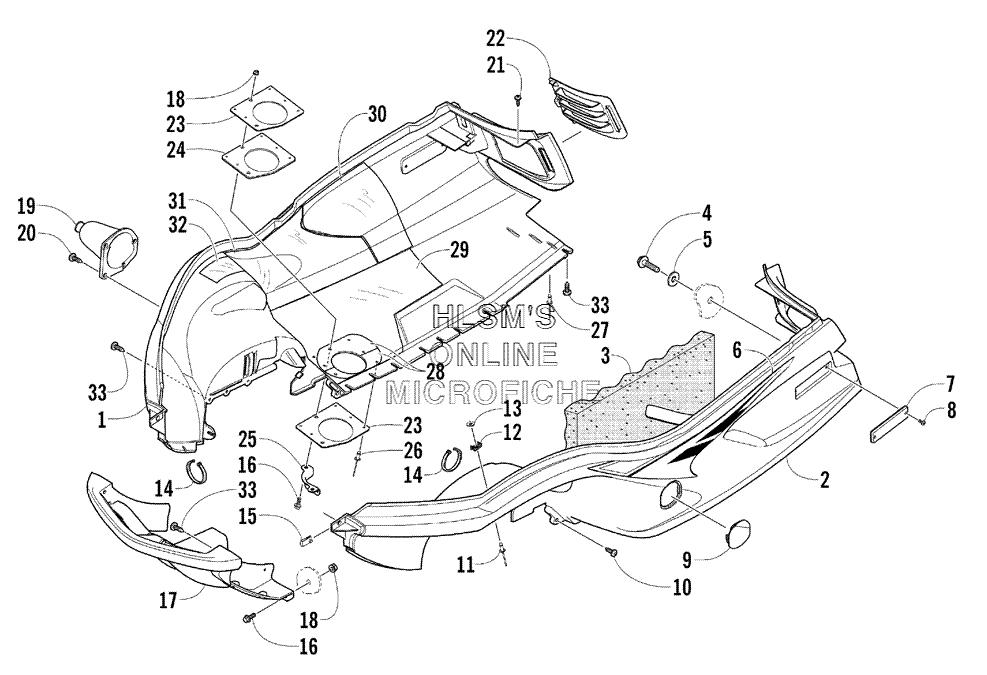

BELLY PAN AND FRONT BUMPER ASSY. для Arctic Cat Z 570 (Red) - 2004 года выпуска
-
№АртикулНазвание
-
12706-330 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
22706-303 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
40623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
50623-184 WASHERWASHER
-
65611-294 DECAL, BELLY PAN (RIGHT)DECAL, BELLY PAN (RIGHT)
-
65611-295 DECAL, BELLY PAN (LEFT)DECAL, BELLY PAN (LEFT)
-
70606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
80623-269 CLIP, RETAININGCLIP, RETAINING
-
93606-045 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
100623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
118060-506 RIVETRIVET
-
120623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
130123-149 WASHERWASHER
-
140123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
150623-427 NUT, UNUT, U
-
168020-040 SCREW, CAPSCREW, CAP
-
171606-949 BUMPER (FRONT)BUMPER (FRONT)
-
188048-366 NUT, LOCKNUT, LOCK
-
190605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
190605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
200623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
210623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
221606-900 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
221606-901 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
230712-939 SHIELD, EXHAUSTSHIELD, EXHAUST
-
241612-514 SEAL, EXHAUSTSEAL, EXHAUST
-
250712-879 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
268060-508 RIVETRIVET
-
278061-508 RIVETRIVET
-
280619-206 TAPE, FOILTAPE, FOIL
-
292606-374 FOIL, PROTECTIVE (LOWER/REAR)FOIL, PROTECTIVE (LOWER/REAR)
-
302606-375 FOIL, PROTECTIVE (UPPER/REAR)FOIL, PROTECTIVE (UPPER/REAR)
-
312606-376 FOIL, PROTECTIVE (LOWER/FRONT)FOIL, PROTECTIVE (LOWER/FRONT)
-
322606-387 FOIL, PROTECTIVE (UPPER/FRONT)FOIL, PROTECTIVE (UPPER/FRONT)
-
331623-129 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
