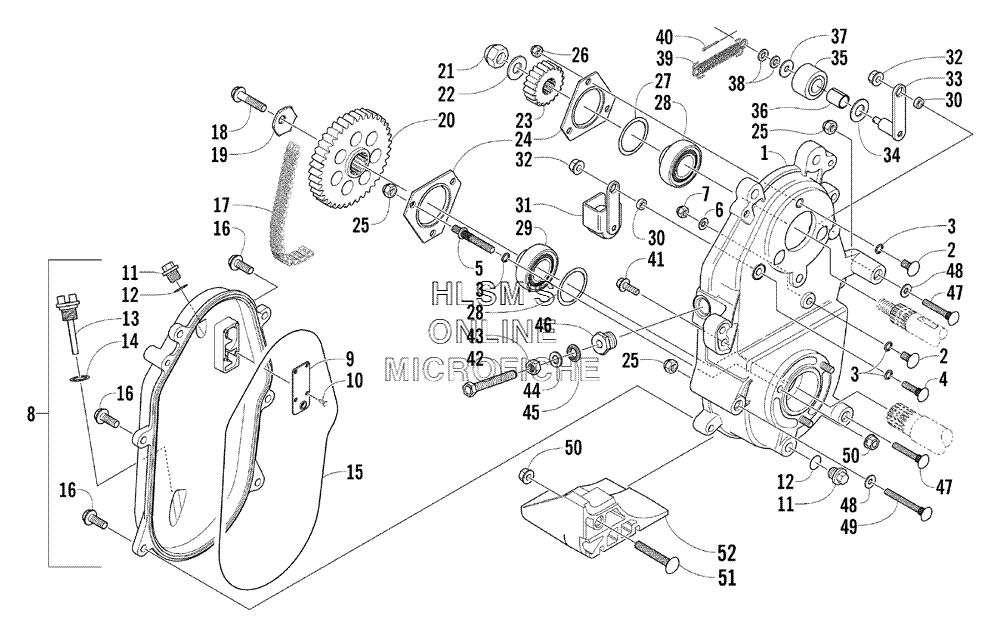

DRIVE/DROPCASE ASSY. для Arctic Cat Z 570 (Red) - 2004 года выпуска
-
№АртикулНазвание
-
10702-421 DROPCASE W/STUDS (INC. 2, 7)DROPCASE W/STUDS (INC. 2, 7)
-
20123-523 BOLT, RIBBEDBOLT, RIBBED
-
30607-025 O-RING, STUDO-RING, STUD
-
40623-117 BOLT, RIBBEDBOLT, RIBBED
-
50623-317 STUDSTUD
-
60623-094 WASHERWASHER
-
78042-426 NUTNUT
-
87996-258 COVER, DROPCASE, ASSY. (INC. 9, 10 AND ONE NO. 11, 12)COVER, DROPCASE, ASSY. (INC. 9, 10 AND ONE NO. 11, 12)
-
91602-152 COVER, OIL VENTCOVER, OIL VENT
-
100623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110623-293 PLUG, DROPCASEPLUG, DROPCASE
-
121602-213 O-RINGO-RING
-
130602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
140670-183 O, O-RINGIL LEVEL STICKO, O-RINGIL LEVEL STICK
-
150602-437 SEAL, DROPCASESEAL, DROPCASE
-
168020-134 SCREW, CAPSCREW, CAP
-
171602-041 CHAIN, 70PCHAIN, 70P
-
188020-222 SCREW, CAPSCREW, CAP
-
190124-091 WASHER, PYRAMIDALWASHER, PYRAMIDAL
-
200602-451 SPROCKET (39 TEETH)SPROCKET (39 TEETH)
-
200602-453 SPROCKET (40 TEETH/OVER 5, 000 FT ALT.)SPROCKET (40 TEETH/OVER 5, 000 FT ALT.)
-
210623-465 NUT, LOCKNUT, LOCK
-
220623-231 WASHER, SPRINGWASHER, SPRING
-
230602-456 SPROCKET (20 TEETH)SPROCKET (20 TEETH)
-
230602-444 SPROCKET (19 TEETH/OVER 5, 000 FT ALT.)SPROCKET (19 TEETH/OVER 5, 000 FT ALT.)
-
241602-521 PLATE, FLANGEPLATE, FLANGE
-
258040-426 NUT, LOCKNUT, LOCK
-
268041-426 NUT, LOCKNUT, LOCK
-
271602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
280107-003 O-RINGO-RING
-
291602-051 BEARING, 1 IN.BEARING, 1 IN.
-
300602-369 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
310702-324 ARM, TIGHTENER, ASSY.ARM, TIGHTENER, ASSY.
-
328048-366 NUT, LOCKNUT, LOCK
-
330702-115 ARM, TIGHTENERARM, TIGHTENER
-
340623-283 WASHERWASHER
-
350702-129 ROLLER, TIGHTENER (INC. 36)ROLLER, TIGHTENER (INC. 36)
-
360602-383 BEARING, CHAIN TIGHTENERBEARING, CHAIN TIGHTENER
-
370623-284 WASHERWASHER
-
388050-212 WASHERWASHER
-
390702-130 SPRING ASSY.SPRING ASSY.
-
400123-082 PIN, COTTERPIN, COTTER
-
418020-135 SCREW, CAPSCREW, CAP
-
421602-101 ADJUSTER, CHAINADJUSTER, CHAIN
-
430123-150 NUTNUT
-
448050-272 WASHERWASHER
-
450623-905 SEAL, ADJUSTER SCREWSEAL, ADJUSTER SCREW
-
460602-876 ADAPTER, MANUAL ADJUSTADAPTER, MANUAL ADJUST
-
478011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
488050-252 WASHERWASHER
-
491623-121 BOLT, CARRIAGEBOLT, CARRIAGE
-
508048-426 NUT, LOCKNUT, LOCK
-
518011-135 BOLT, CARRIAGEBOLT, CARRIAGE
-
520616-964 GUARD, DROPCASEGUARD, DROPCASE
