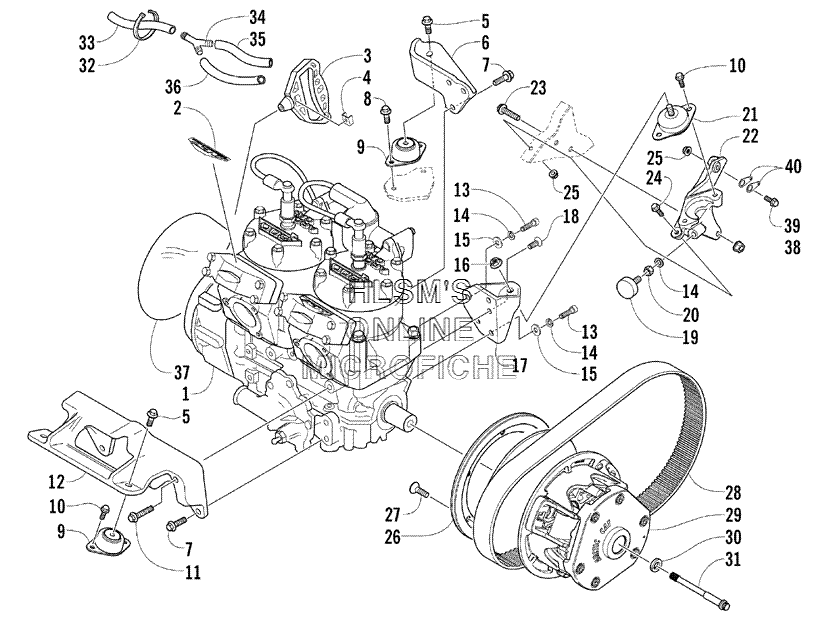

ENGINE AND RELATED PARTS для Arctic Cat ZR 900 (Black-Green) - 2004 года выпуска
-
№АртикулНазвание
-
10662-362 ENGINE, AA86L3ENGINE, AA86L3
-
23611-967 DECAL, "APV"DECAL, "APV"
-
30636-363 HANDLE, RECOILHANDLE, RECOIL
-
40606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
58020-220 SCREW, CAPSCREW, CAP
-
60708-123 BRACKET, MOUNTING, ENGINE (RIGHT/REAR)BRACKET, MOUNTING, ENGINE (RIGHT/REAR)
-
78020-223 SCREW, CAPSCREW, CAP
-
88020-130 SCREW, CAPSCREW, CAP
-
90608-347 MOUNT, ENGINEMOUNT, ENGINE
-
100623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
118020-228 SCREW, CAPSCREW, CAP
-
120708-116 BRACKET, MOUNTING, ENGINE (FRONT)BRACKET, MOUNTING, ENGINE (FRONT)
-
138005-674 SCREW, CAPSCREW, CAP
-
148050-272 WASHERWASHER
-
158051-277 WASHER, LOCKWASHER, LOCK
-
168048-486 NUT, LOCKNUT, LOCK
-
170708-427 BRACKET, MOUNTING, ENGINE (LEFT/REAR)BRACKET, MOUNTING, ENGINE (LEFT/REAR)
-
180623-881 SCREW, MACHINESCREW, MACHINE
-
190608-355 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
200123-191 NUTNUT
-
210708-426 MOUNT, ENGINE, ASSY.MOUNT, ENGINE, ASSY.
-
220708-425 BRACKET, MOUNTING, ENGINEBRACKET, MOUNTING, ENGINE
-
238020-132 SCREW, CAPSCREW, CAP
-
248020-040 SCREW, CAPSCREW, CAP
-
258048-366 NUT, LOCKNUT, LOCK
-
260645-410 RING, CLUTCH DAMPERRING, CLUTCH DAMPER
-
271623-128 SCREW, MACHINESCREW, MACHINE
-
280627-032 BELT, DRIVEBELT, DRIVE
-
290725-404 CLUTCH, DRIVECLUTCH, DRIVE
-
300623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
310623-913 BOLT, CLUTCHBOLT, CLUTCH
-
320123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
330610-535 HOSE, DRAIN, VEV (EXIT)HOSE, DRAIN, VEV (EXIT)
-
340670-875 Y, FITTINGY, FITTING
-
350610-364 HOSE, DRAIN, VEV (PTO)HOSE, DRAIN, VEV (PTO)
-
360610-363 HOSE, DRAIN, VEV (MAGNETO)HOSE, DRAIN, VEV (MAGNETO)
-
371670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
388048-426 NUT, LOCKNUT, LOCK
-
398020-042 SCREW, CAPSCREW, CAP
-
401623-244 WASHERWASHER
