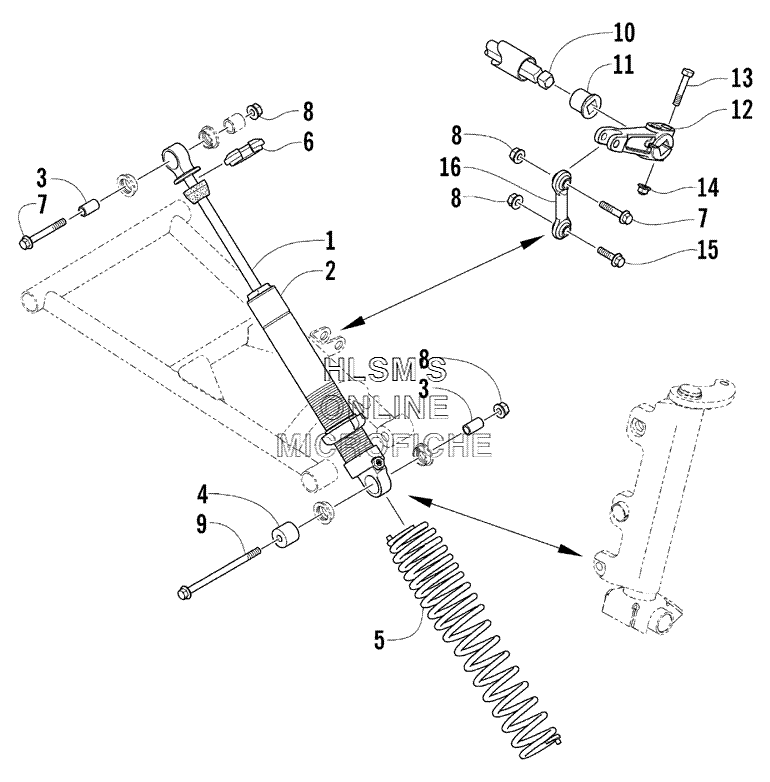

SHOCK ABSORBER AND SWAY BAR ASSY. для Arctic Cat ZR 900 (Black-Green) - 2004 года выпуска
-
№АртикулНазвание
-
10703-929 SHOCK SUSPENSION (FRONT)SHOCK SUSPENSION (FRONT)
-
21603-271 SLEEVE, WEARSLEEVE, WEAR
-
31603-023 SLEEVE, SHOCK (POWDER METAL)SLEEVE, SHOCK (POWDER METAL)
-
40603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
51603-612 SPRING, COMPRESSIONSPRING, COMPRESSION
-
61603-890 RETAINER, SPRINGRETAINER, SPRING
-
78020-226 SCREW, CAPSCREW, CAP
-
88048-486 NUT, LOCKNUT, LOCK
-
98020-232 SCREW, CAPSCREW, CAP
-
100703-202 SWAY BARSWAY BAR
-
110603-151 BEARINGBEARING
-
120603-917 ARM, SWAY BARARM, SWAY BAR
-
138002-137 SCREW, CAPSCREW, CAP
-
148048-426 NUT, LOCKNUT, LOCK
-
158020-225 SCREW, CAPSCREW, CAP
-
161603-414 LINK, SWAY BARLINK, SWAY BAR
