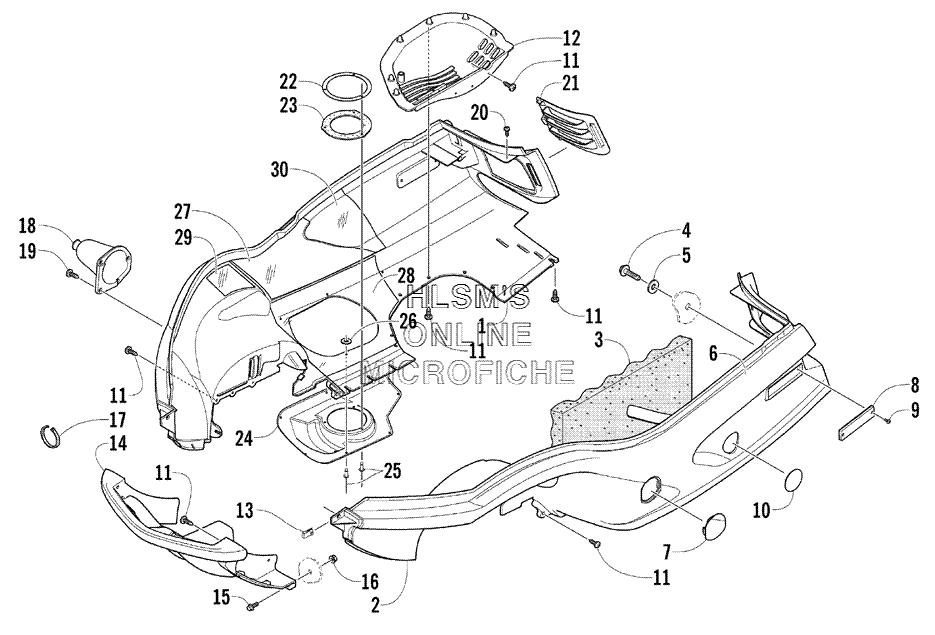

BELLY PAN AND FRONT BUMPER ASSY. для Arctic Cat ZR 900 EFI (Black-Green) - 2004 года выпуска
-
№АртикулНазвание
-
12706-396 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
22706-505 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-449 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
40623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
50623-184 WASHERWASHER
-
65611-262 DECAL, BELLY PAN (RIGHT)DECAL, BELLY PAN (RIGHT)
-
65611-263 DECAL, BELLY PAN (LEFT)DECAL, BELLY PAN (LEFT)
-
71606-767 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
80606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
100623-600 PLUG, BELLY PANPLUG, BELLY PAN
-
110623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
122706-395 GUARD, BRAKEGUARD, BRAKE
-
130623-427 NUT, UNUT, U
-
141606-949 BUMPER (FRONT)BUMPER (FRONT)
-
158020-040 SCREW, CAPSCREW, CAP
-
168048-366 NUT, LOCKNUT, LOCK
-
170123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
180605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
180605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
190623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
200623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
211606-044 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
211606-045 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
220712-917 PLATE, SEAL, EXHAUST OUTLETPLATE, SEAL, EXHAUST OUTLET
-
231612-372 SEAL, EXHAUST, OUTLETSEAL, EXHAUST, OUTLET
-
241612-450 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
258060-510 RIVETRIVET
-
260123-149 WASHERWASHER
-
272606-376 FOIL, PROTECTIVE (UPPER/FRONT)FOIL, PROTECTIVE (UPPER/FRONT)
-
282606-374 FOIL, PROTECTIVE (LOWER/REAR)FOIL, PROTECTIVE (LOWER/REAR)
-
292606-387 FOIL, PROTECTIVE (LOWER/FRONT)FOIL, PROTECTIVE (LOWER/FRONT)
-
302606-375 FOIL, PROTECTIVE (UPPER/REAR)FOIL, PROTECTIVE (UPPER/REAR)
