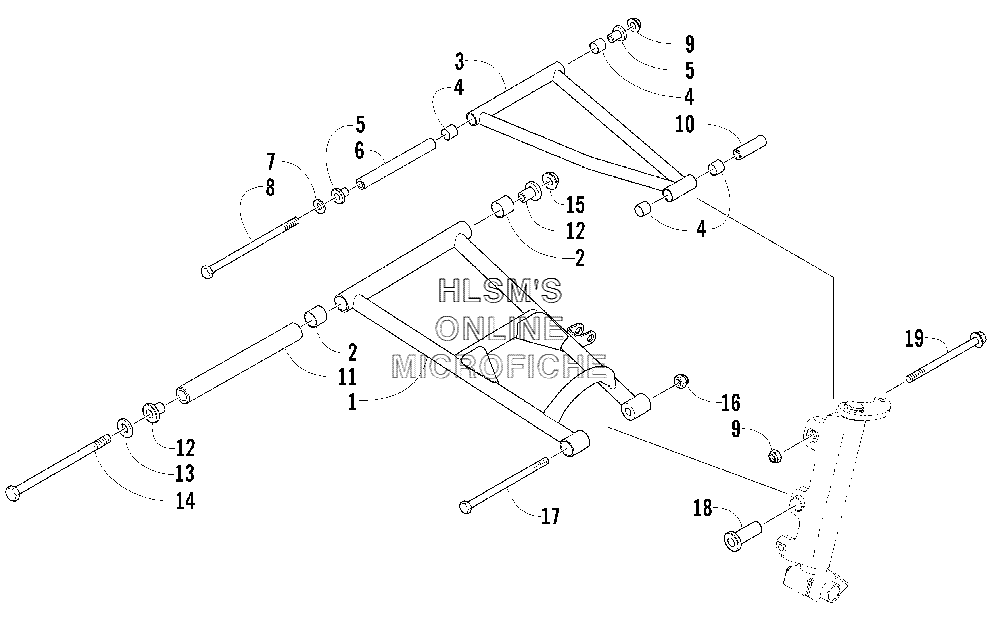

A-ARM ASSY. для Arctic Cat ZR 900 EFI Sno Pro (Black-Red International) - 2004 года выпуска
-
№АртикулНазвание
-
11703-028 ARM (LOWER/RIGHT) (INC. 2)ARM (LOWER/RIGHT) (INC. 2)
-
11703-029 ARM (LOWER/LEFT) (INC. 2)ARM (LOWER/LEFT) (INC. 2)
-
20603-158 BEARINGBEARING
-
30703-939 ARM (UPPER) (INC. 4)ARM (UPPER) (INC. 4)
-
40603-083 BEARINGBEARING
-
51603-244 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
60603-692 TUBE, AXLETUBE, AXLE
-
70623-664 WASHERWASHER
-
80623-509 SCREW, CAPSCREW, CAP
-
98048-486 NUT, LOCKNUT, LOCK
-
100603-864 TUBE, AXLETUBE, AXLE
-
110603-693 TUBE, AXLETUBE, AXLE
-
121603-397 AXLE, NON, SERRATEDAXLE, NON, SERRATED
-
130623-663 WASHERWASHER
-
140623-508 SCREW, CAPSCREW, CAP
-
158048-546 NUT, LOCKNUT, LOCK
-
168040-546 NUT, LOCKNUT, LOCK
-
171623-009 SCREW, CAPSCREW, CAP
-
181603-616 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
198026-232 SCREW, CAPSCREW, CAP
