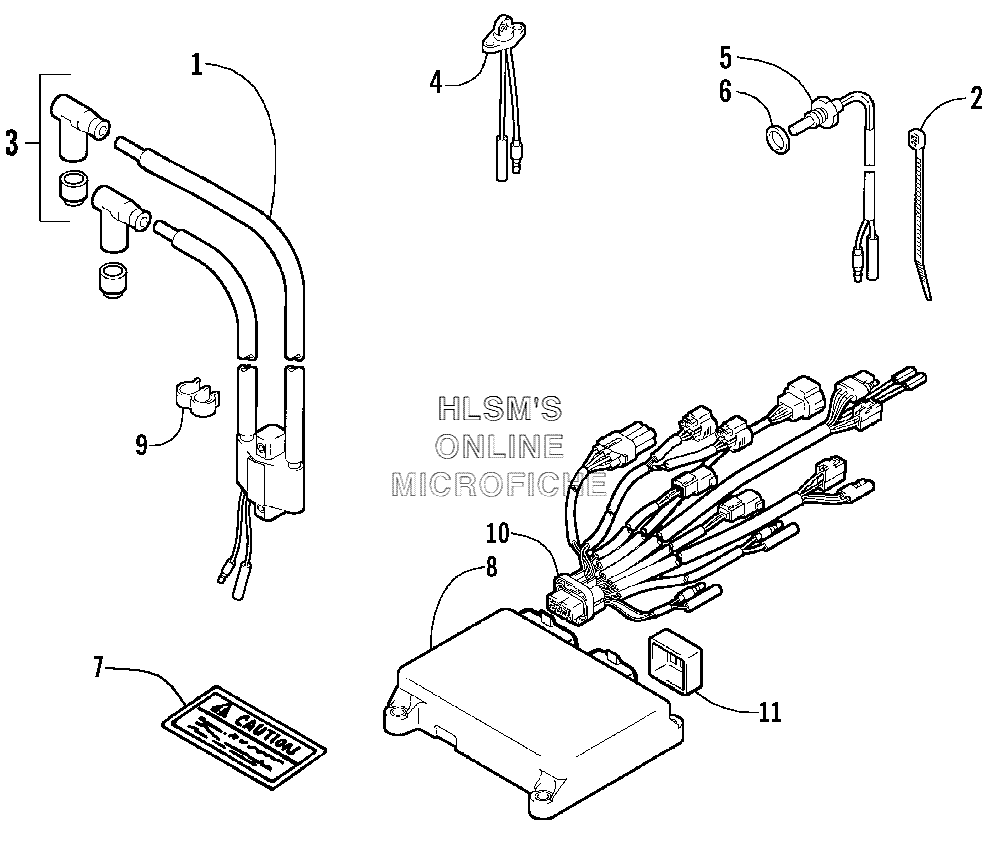

ELECTRICAL для Arctic Cat ZR 900 EFI Sno Pro (Black-Red International) - 2004 года выпуска
-
№АртикулНазвание
-
13005-381 COIL, IGNITION, ASSY.COIL, IGNITION, ASSY.
-
23005-237 CABLE TIECABLE TIE
-
33006-367 CAP, SPARK PLUGCAP, SPARK PLUG
-
43006-728 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
53006-725 SENSOR, COOLANTSENSOR, COOLANT
-
63005-233 WASHER, COOLANT SENSORWASHER, COOLANT SENSOR
-
72611-755 DECAL, CAUTION, "HOT SURFACE"DECAL, CAUTION, "HOT SURFACE"
-
83006-653 ECU, CIRCLEECU, CIRCLE
-
83006-654 ECU, SQUAREECU, SQUARE
-
83006-655 ECU, TRIANGLEECU, TRIANGLE
-
93005-387 CLAMPCLAMP
-
103006-753 HARNESS, ECUHARNESS, ECU
-
113005-908 CAP, RUBBERCAP, RUBBER
