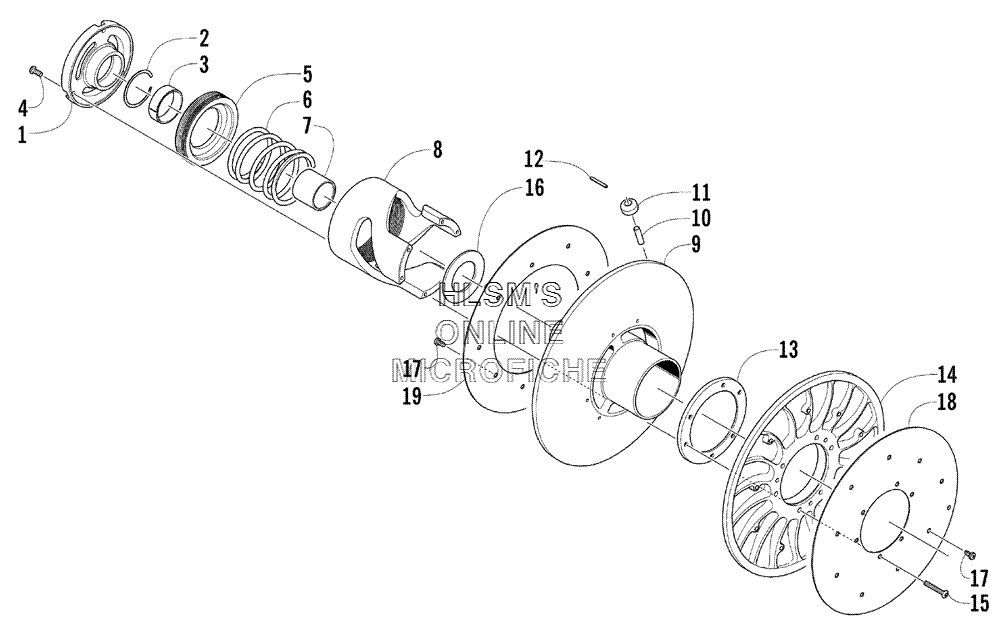

DRIVEN CLUTCH для Arctic Cat ZR 900 EFI Sno Pro (Black-Red) - 2004 года выпуска
-
№АртикулНазвание
-
-0726-176 DRIVEN CLUTCH ASSY.DRIVEN CLUTCH ASSY.
-
10748-595 COVER, TORQUE BRACKET (INC. 2, 3)COVER, TORQUE BRACKET (INC. 2, 3)
-
20648-433 RING, SNAPRING, SNAP
-
30648-009 BEARINGBEARING
-
48019-397 SCREW, MACHINESCREW, MACHINE
-
50648-439 ADJUSTER, SPRINGADJUSTER, SPRING
-
60648-693 SPRING, DRIVEN CLUTCH, WHITESPRING, DRIVEN CLUTCH, WHITE
-
70648-437 SEAT, SPRINGSEAT, SPRING
-
80648-694 BRACKET, TORQUE 50°/36°BRACKET, TORQUE 50°/36°
-
80648-689 BRACKET, TORQUE 42°/36° (OVER 9, 000 FT ALT.)BRACKET, TORQUE 42°/36° (OVER 9, 000 FT ALT.)
-
90748-599 SHEAVE, STATIONARY (INC. 10, 12)SHEAVE, STATIONARY (INC. 10, 12)
-
100648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
110648-139 ROLLER, CAMROLLER, CAM
-
128070-224 PIN, SPRINGPIN, SPRING
-
130648-688 RETAINER, TORQUE BRACKETRETAINER, TORQUE BRACKET
-
140748-591 SHEAVE, MOVABLESHEAVE, MOVABLE
-
151623-258 SCREW, MACHINESCREW, MACHINE
-
160648-692 SPACERSPACER
-
170623-914 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180648-654 COVER, MOVABLE SHEAVECOVER, MOVABLE SHEAVE
-
190648-653 COVER, STATIONARY SHEAVECOVER, STATIONARY SHEAVE
