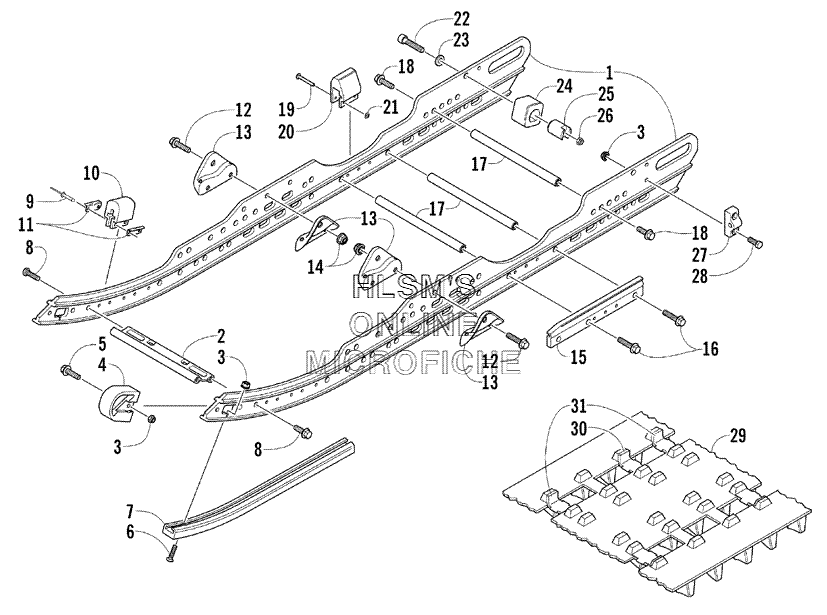

SLIDE RAIL AND TRACK ASSY. для Arctic Cat ZR 900 EFI Sno Pro (Black-Red) - 2004 года выпуска
-
№АртикулНазвание
-
-7997-405 COMPLETE SKID FRAME ASSY.COMPLETE SKID FRAME ASSY.
-
12604-050 RAIL, FORMEDRAIL, FORMED
-
21604-109 SUPPORT, RAILSUPPORT, RAIL
-
38047-366 NUT, LOCKNUT, LOCK
-
41604-137 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
58020-042 SCREW, CAPSCREW, CAP
-
60123-859 SCREW, MACHINESCREW, MACHINE
-
70604-640 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
88020-134 SCREW, CAPSCREW, CAP
-
98060-633 RIVET, SOLIDRIVET, SOLID
-
100604-918 PAD, SHOCKPAD, SHOCK
-
110604-967 BRACKET, RETAININGBRACKET, RETAINING
-
128020-131 SCREW, CAPSCREW, CAP
-
132604-593 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
148048-426 NUT, LOCKNUT, LOCK
-
151604-488 BRACE, RAIL (RIGHT)BRACE, RAIL (RIGHT)
-
151604-489 BRACE, RAIL (LEFT)BRACE, RAIL (LEFT)
-
168020-225 SCREW, CAPSCREW, CAP
-
170604-930 AXLEAXLE
-
188020-223 SCREW, CAPSCREW, CAP
-
190623-772 RIVET, SOLIDRIVET, SOLID
-
201604-487 PAD, SHOCK, RUBBERPAD, SHOCK, RUBBER
-
210623-773 NUT, PUSHNUT, PUSH
-
228005-676 SCREW, CAP, SOCKET HEADSCREW, CAP, SOCKET HEAD
-
230623-044 WASHERWASHER
-
242604-545 BLOCK, COUPLER ARM (REAR)BLOCK, COUPLER ARM (REAR)
-
252604-046 BUSHING, COUPLER BLOCKBUSHING, COUPLER BLOCK
-
268041-486 NUT, LOCKNUT, LOCK
-
270704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
288002-042 SCREW, CAPSCREW, CAP
-
291602-154 TRACK ASSY. (INC. 30, 31)TRACK ASSY. (INC. 30, 31)
-
300602-541 CLIP, GUIDECLIP, GUIDE
-
310602-488 CLIP, WEARCLIP, WEAR
