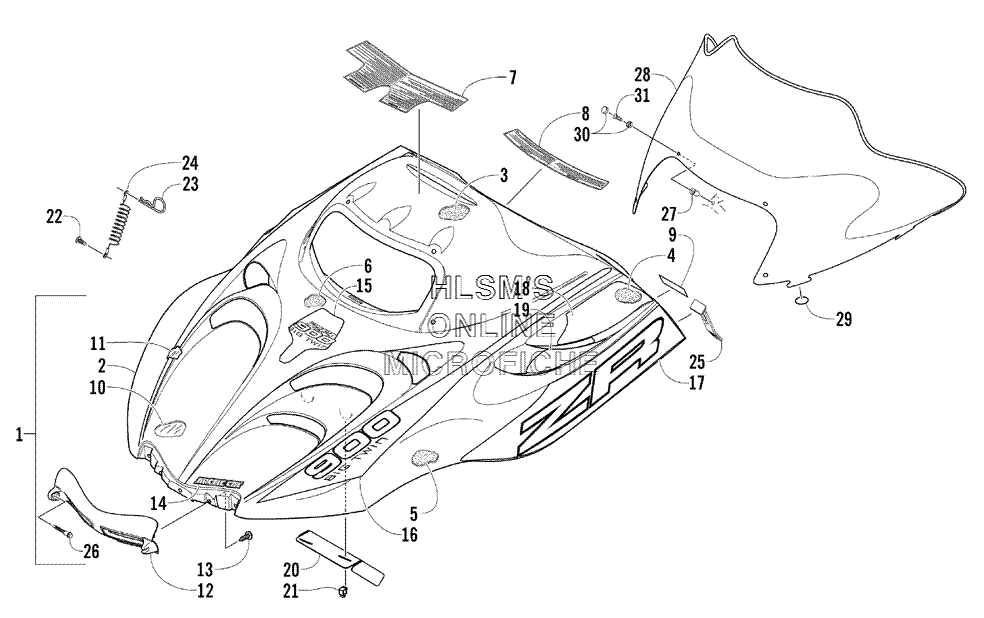

HOOD AND WINDSHIELD ASSY. для Arctic Cat ZR 900 Sno Pro (Black-Red) - 2004 года выпуска
-
№АртикулНазвание
-
11718-382 HOOD W/DECALS (INC. 2, 19)HOOD W/DECALS (INC. 2, 19)
-
21718-054 HOOD W/O DECALS (INC. 3, 13)HOOD W/O DECALS (INC. 3, 13)
-
30717-148 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30717-149 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40717-162 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
40717-141 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
50717-164 FOAM, HOOD (FRONT/RIGHT)FOAM, HOOD (FRONT/RIGHT)
-
50717-147 FOAM, HOOD (FRONT/LEFT)FOAM, HOOD (FRONT/LEFT)
-
60717-138 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
112606-233 FOIL, HOOD (UPPER/RIGHT)FOIL, HOOD (UPPER/RIGHT)
-
121606-720 HINGE, HOODHINGE, HOOD
-
130623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
145611-284 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
155611-272 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
165611-274 DECAL, "900", HOOD (RIGHT)DECAL, "900", HOOD (RIGHT)
-
165611-275 DECAL, "900", HOOD (LEFT)DECAL, "900", HOOD (LEFT)
-
175611-280 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
175611-281 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
185611-276 DECAL, HOOD, VENT (UPPER/RIGHT)DECAL, HOOD, VENT (UPPER/RIGHT)
-
185611-277 DECAL, HOOD, VENT (UPPER/LEFT)DECAL, HOOD, VENT (UPPER/LEFT)
-
195611-278 DECAL, HOOD, VENT (LOWER/RIGHT)DECAL, HOOD, VENT (LOWER/RIGHT)
-
195611-279 DECAL, HOOD, VENT (LOWER/LEFT)DECAL, HOOD, VENT (LOWER/LEFT)
-
202606-613 DEFLECTOR, AIRDEFLECTOR, AIR
-
210123-394 CLIPCLIP
-
220623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
230623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
242606-247 CABLE, HOODCABLE, HOOD
-
251606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
261623-016 SCREW, MACHINESCREW, MACHINE
-
270623-845 NUT, EXPANSIONNUT, EXPANSION
-
283606-067 WINDSHIELDWINDSHIELD
-
290616-032 O-RINGO-RING
-
300124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
310623-902 SCREW, MACHINESCREW, MACHINE
