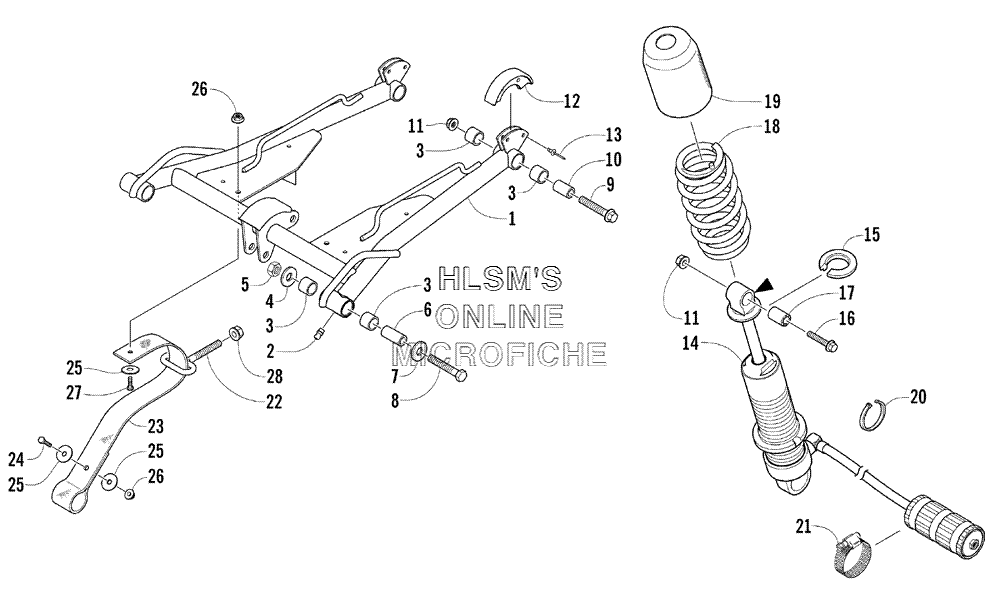

REAR SUSPENSION FRONT ARM ASSY. для Arctic Cat ZR 900 Sno Pro (Black-Red) - 2004 года выпуска
-
№АртикулНазвание
-
11704-242 ARM SUSPENSION (FRONT) (INC. 2, 3)ARM SUSPENSION (FRONT) (INC. 2, 3)
-
21623-010 FITTING, GREASEFITTING, GREASE
-
30604-889 BUSHING ARM (FRONT)BUSHING ARM (FRONT)
-
40114-197 WASHERWASHER
-
58040-486 NUT, LOCKNUT, LOCK
-
61604-162 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
70623-044 WASHERWASHER
-
88002-230 SCREW, CAPSCREW, CAP
-
98020-228 SCREW, CAPSCREW, CAP
-
100104-629 SPACER ARM (FRONT)SPACER ARM (FRONT)
-
118048-486 NUT, LOCKNUT, LOCK
-
120604-183 BUMPER, TRACK GUIDEBUMPER, TRACK GUIDE
-
138060-710 RIVETRIVET
-
140704-635 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
-
151603-890 RETAINER, SPRINGRETAINER, SPRING
-
168020-226 SCREW, CAPSCREW, CAP
-
170603-030 AXLE, SERRATEDAXLE, SERRATED
-
180704-855 SPRING, COMPRESSIONSPRING, COMPRESSION
-
190604-790 COVER, SHOCKCOVER, SHOCK
-
200123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
210214-025 CLAMP, RESERVOIRCLAMP, RESERVOIR
-
221604-583 ADJUSTER ARM (FRONT)ADJUSTER ARM (FRONT)
-
231604-866 STRAP, LIMITERSTRAP, LIMITER
-
248002-042 SCREW, CAPSCREW, CAP
-
250623-184 WASHERWASHER
-
268048-366 NUT, LOCKNUT, LOCK
-
278002-040 SCREW, CAPSCREW, CAP
-
288048-426 NUT, LOCKNUT, LOCK
