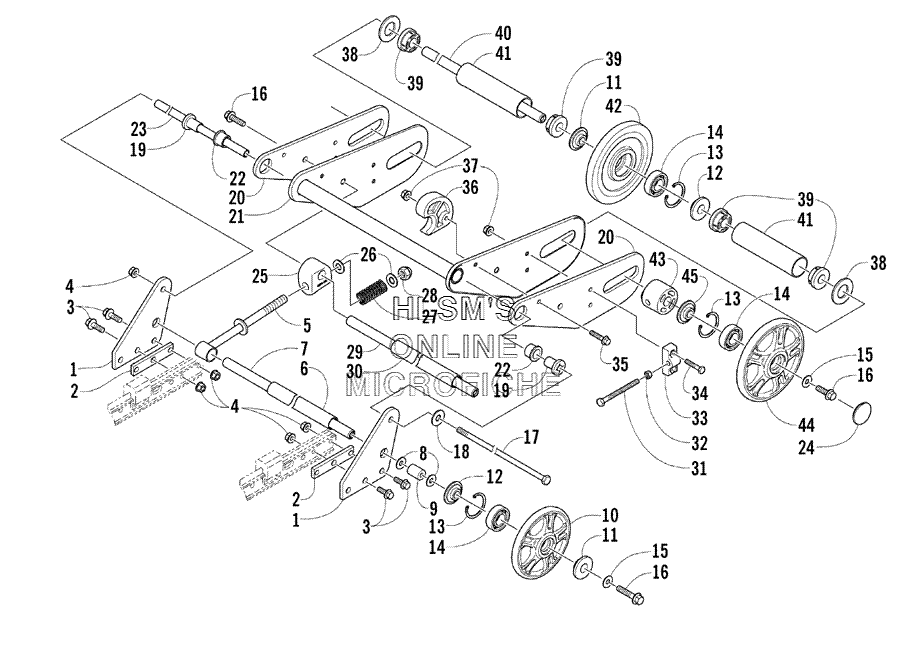

ARTICULATING SKID FRAME ASSEMBLY для Arctic Cat Bearcat Wide Track - 2005 года выпуска
-
№АртикулНазвание
-
12604-418 BRACKET, MOUNTING, ARTICULATING SKID FRAMEBRACKET, MOUNTING, ARTICULATING SKID FRAME
-
22604-417 SPACERSPACER
-
38020-224 SCREW, CAPSCREW, CAP
-
48048-486 NUT, LOCKNUT, LOCK
-
50704-262 BRACKET, SPRINGBRACKET, SPRING
-
60604-963 TUBE, AXLETUBE, AXLE
-
70604-952 AXLEAXLE
-
80123-439 WASHERWASHER
-
90604-901 AXLE, OUTER, IDLER WHEELAXLE, OUTER, IDLER WHEEL
-
101604-693 WHEEL, IDLER (INC. 11, 14)WHEEL, IDLER (INC. 11, 14)
-
111604-773 INSERT, WHEEL, OUTSIDEINSERT, WHEEL, OUTSIDE
-
121604-772 INSERT, WHEEL, INSIDEINSERT, WHEEL, INSIDE
-
130123-798 RING, RETAININGRING, RETAINING
-
140107-598 BEARINGBEARING
-
150123-570 WASHERWASHER
-
168020-222 SCREW, CAPSCREW, CAP
-
170623-971 SCREW, CAPSCREW, CAP
-
188050-277 WASHERWASHER
-
190603-061 AXLE, SERRATEDAXLE, SERRATED
-
201604-004 BRACKET, MOUNTING AXLE (REAR)BRACKET, MOUNTING AXLE (REAR)
-
210704-288 ARM, SWING (INC. 22)ARM, SWING (INC. 22)
-
220104-386 BUSHING ARM (REAR)BUSHING ARM (REAR)
-
230604-962 AXLE, SWING ARMAXLE, SWING ARM
-
240604-246 CAP, IDLER WHEELCAP, IDLER WHEEL
-
250604-839 BLOCK, SLIDEBLOCK, SLIDE
-
268050-342 WASHERWASHER
-
271704-131 SPRINGSPRING
-
288040-606 NUT, LOCKNUT, LOCK
-
290604-964 AXLE, SLIDE BLOCKAXLE, SLIDE BLOCK
-
300604-966 SPACER, ARTICULATING SKID FRAMESPACER, ARTICULATING SKID FRAME
-
310623-123 SCREW, CAPSCREW, CAP
-
328042-486 NUTNUT
-
330704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
348002-042 SCREW, CAPSCREW, CAP
-
358020-045 SCREW, CAPSCREW, CAP
-
360604-863 BUMPER, TRACK GUIDEBUMPER, TRACK GUIDE
-
378048-366 NUT, LOCKNUT, LOCK
-
380623-220 WASHERWASHER
-
390604-968 BUSHING, SPACERBUSHING, SPACER
-
401604-682 AXLE WHEEL (REAR)AXLE WHEEL (REAR)
-
410604-965 SPACER, CENTERSPACER, CENTER
-
421604-685 WHEEL, IDLER (INC. 11, 14)WHEEL, IDLER (INC. 11, 14)
-
430604-936 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
441604-694 WHEEL, IDLER (INC. 13, 14 AND 45)WHEEL, IDLER (INC. 13, 14 AND 45)
-
451604-774 INSERT, IDLER WHEELINSERT, IDLER WHEEL
