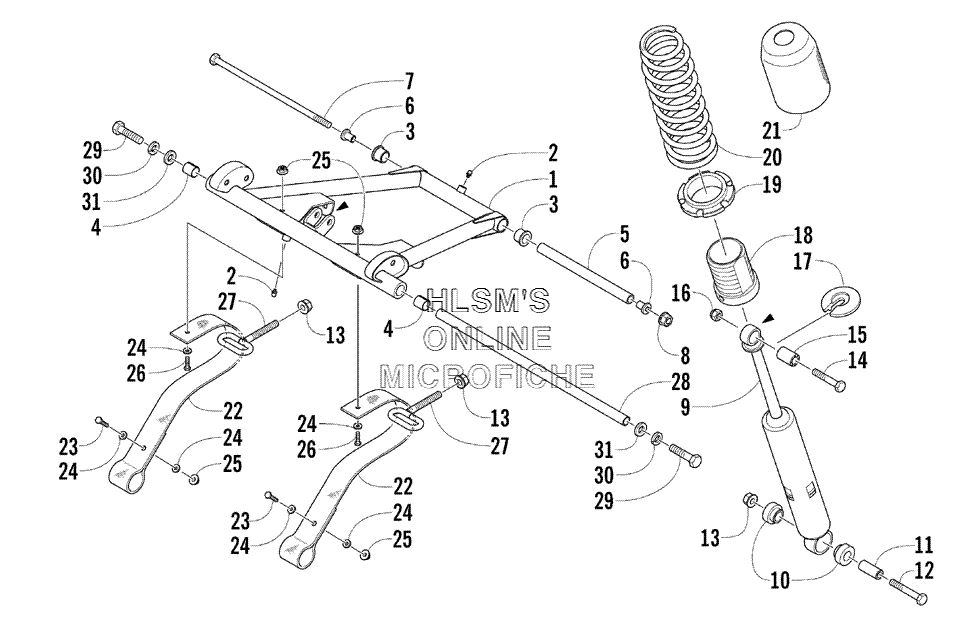

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat Bearcat Wide Track - 2005 года выпуска
-
№АртикулНазвание
-
11704-269 ARM SUSPENSION (FRONT) (INC. 2, 4)ARM SUSPENSION (FRONT) (INC. 2, 4)
-
21623-010 FITTING, GREASEFITTING, GREASE
-
30104-386 BUSHING ARM (FRONT)BUSHING ARM (FRONT)
-
40603-083 BEARINGBEARING
-
51604-974 TUBE, AXLETUBE, AXLE
-
60603-061 AXLE, SERRATEDAXLE, SERRATED
-
71623-064 SCREW, CAPSCREW, CAP
-
88047-486 NUT, LOCKNUT, LOCK
-
91604-369 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
-
101604-384 BUSHING, SHOCKBUSHING, SHOCK
-
111604-329 AXLE, PIVOT, SHOCKAXLE, PIVOT, SHOCK
-
128020-228 SCREW, CAPSCREW, CAP
-
138048-486 NUT, LOCKNUT, LOCK
-
148020-226 SCREW, CAPSCREW, CAP
-
150603-030 AXLE, SERRATEDAXLE, SERRATED
-
168041-486 NUT, LOCKNUT, LOCK
-
171603-889 RETAINER, SPRINGRETAINER, SPRING
-
180603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
190603-259 NUT, RETAINER, SPRINGNUT, RETAINER, SPRING
-
201703-072 SPRING, COMPRESSIONSPRING, COMPRESSION
-
210604-590 COVER, SHOCKCOVER, SHOCK
-
222604-832 STRAP, LIMITERSTRAP, LIMITER
-
238002-042 SCREW, CAPSCREW, CAP
-
240623-184 WASHERWASHER
-
258047-366 NUT, LOCKNUT, LOCK
-
268002-040 SCREW, CAPSCREW, CAP
-
270704-256 ADJUSTER ARM (FRONT)ADJUSTER ARM (FRONT)
-
280604-948 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
298002-224 SCREW, CAPSCREW, CAP
-
308051-277 WASHER, LOCKWASHER, LOCK
-
310623-044 WASHERWASHER
