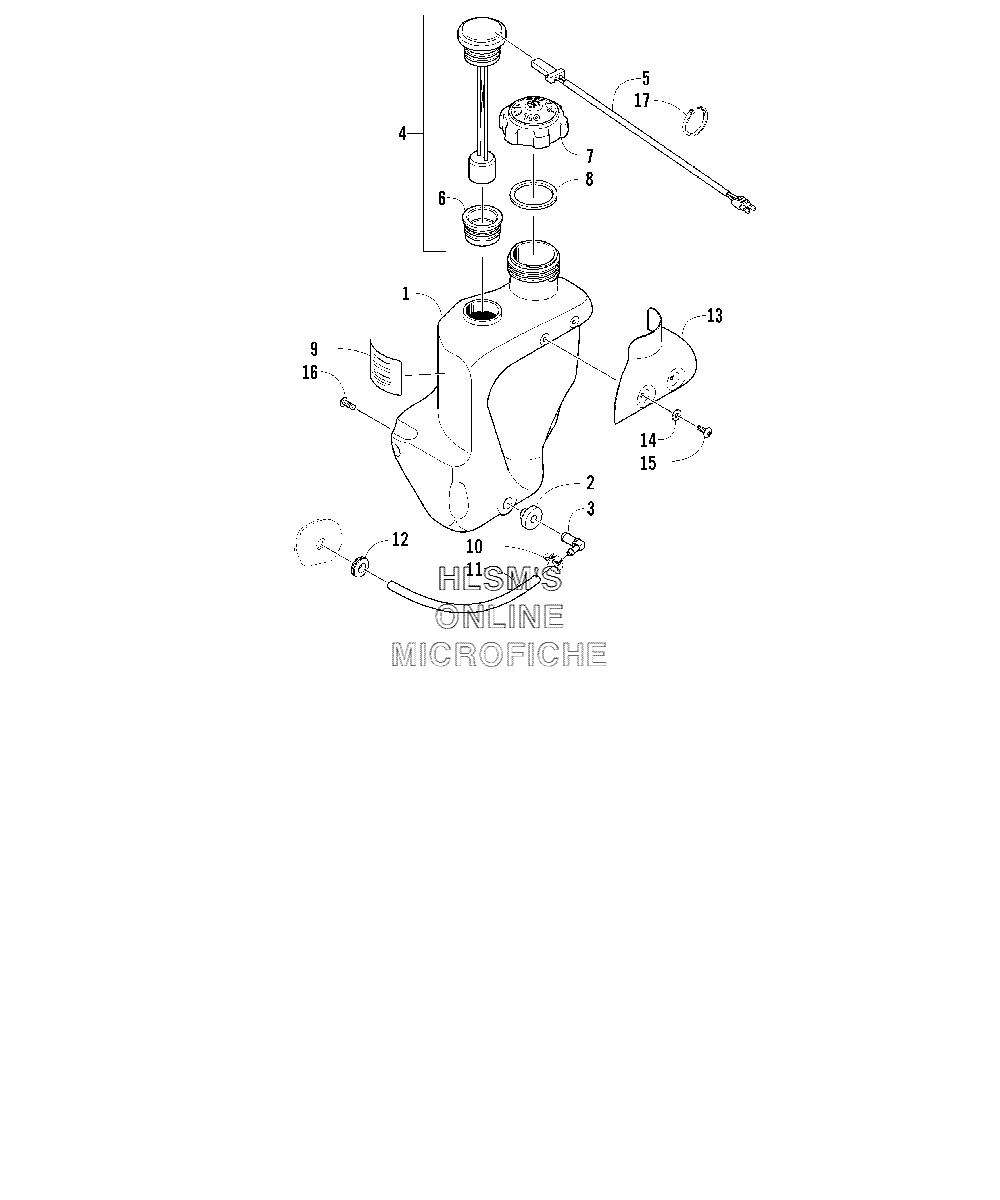

OIL TANK ASSEMBLY для Arctic Cat M7 EFI 153'' (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
11670-604 TANK, OILTANK, OIL
-
21670-325 GROMMETGROMMET
-
31670-481 FITTING, ELBOWFITTING, ELBOW
-
40609-503 SENSOR, LOW OIL, ASSEMBLY (INC. 5, 6)SENSOR, LOW OIL, ASSEMBLY (INC. 5, 6)
-
50609-518 SWITCH, OIL SENSOR W/HARNESSSWITCH, OIL SENSOR W/HARNESS
-
60609-237 SEAL, GROMMET, OIL SENSORSEAL, GROMMET, OIL SENSOR
-
71670-365 CAP, OIL TANK (INC. 8)CAP, OIL TANK (INC. 8)
-
80109-733 SEAL, CAP, OIL TANKSEAL, CAP, OIL TANK
-
94611-532 DECAL, OIL TANKDECAL, OIL TANK
-
100124-045 CLAMP, HOSECLAMP, HOSE
-
110610-015 HOSE, OIL (100 FT)HOSE, OIL (100 FT)
-
110610-016 HOSE, OIL (25 FT)HOSE, OIL (25 FT)
-
121623-256 GROMMETGROMMET
-
133606-982 SHIELD, HEATSHIELD, HEAT
-
148050-157 WASHERWASHER
-
158017-395 SCREW, MACHINESCREW, MACHINE
-
168017-577 SCREW, MACHINESCREW, MACHINE
-
170123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
