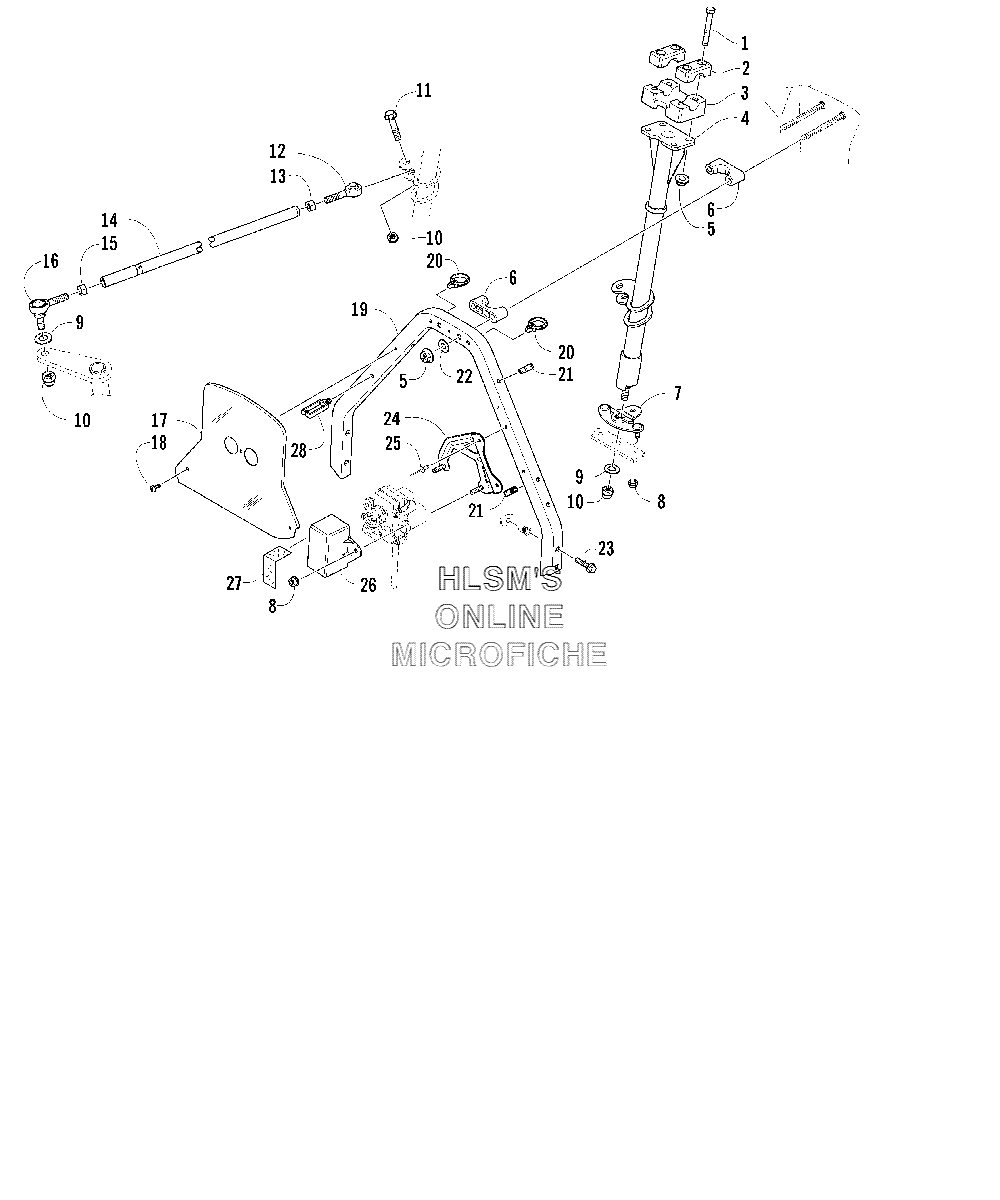

STEERING POST ASSEMBLY для Arctic Cat M7 EFI 153'' (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
18002-138 SCREW, CAPSCREW, CAP
-
20605-506 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
30605-507 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
41705-023 POST, STEERINGPOST, STEERING
-
58047-426 NUT, LOCKNUT, LOCK
-
60605-576 BLOCK, MOUNTING, STEERING POSTBLOCK, MOUNTING, STEERING POST
-
71705-050 STOP, STEERING POSTSTOP, STEERING POST
-
88047-366 NUT, LOCKNUT, LOCK
-
90623-044 WASHERWASHER
-
100623-025 NUT, LOCKNUT, LOCK
-
118004-225 SCREW, CAPSCREW, CAP
-
120605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
130623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
140605-726 TUBE, TIE RODTUBE, TIE ROD
-
150123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
160605-511 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
173606-749 PANEL, CLOSE, OUTERPANEL, CLOSE, OUTER
-
181623-353 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
190705-994 SUPPORT, STEERINGSUPPORT, STEERING
-
200623-454 CLIP, RETAININGCLIP, RETAINING
-
211623-406 CLIP, ROUTINGCLIP, ROUTING
-
220623-942 WASHERWASHER
-
238020-137 SCREW, CAPSCREW, CAP
-
242706-814 PLATE, MOUNTING, SERVOMOTORPLATE, MOUNTING, SERVOMOTOR
-
258060-686 RIVETRIVET
-
262606-129 COVER, SERVOMOTORCOVER, SERVOMOTOR
-
273606-814 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
281623-407 CLIP, ROUTINGCLIP, ROUTING
