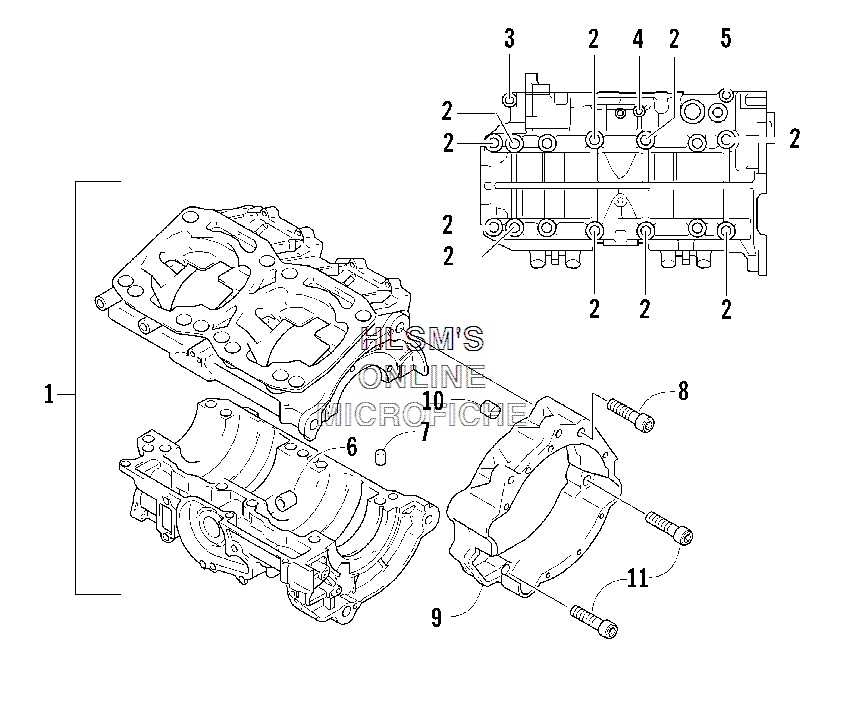

CRANKCASE ASSEMBLY для Arctic Cat M7 EFI Limited - 2005 года выпуска
-
№АртикулНазвание
-
13006-924 CRANKCASE (INC. 2, 7)CRANKCASE (INC. 2, 7)
-
23006-488 BOLTBOLT
-
33004-376 BOLTBOLT
-
43006-650 BOLTBOLT
-
53004-442 BOLTBOLT
-
63003-647 BUSHINGBUSHING
-
73005-206 PIN, DOWELPIN, DOWEL
-
83006-549 BOLTBOLT
-
93006-498 CASE, MAGNETOCASE, MAGNETO
-
103006-547 PIN, DOWELPIN, DOWEL
-
113006-548 BOLTBOLT
