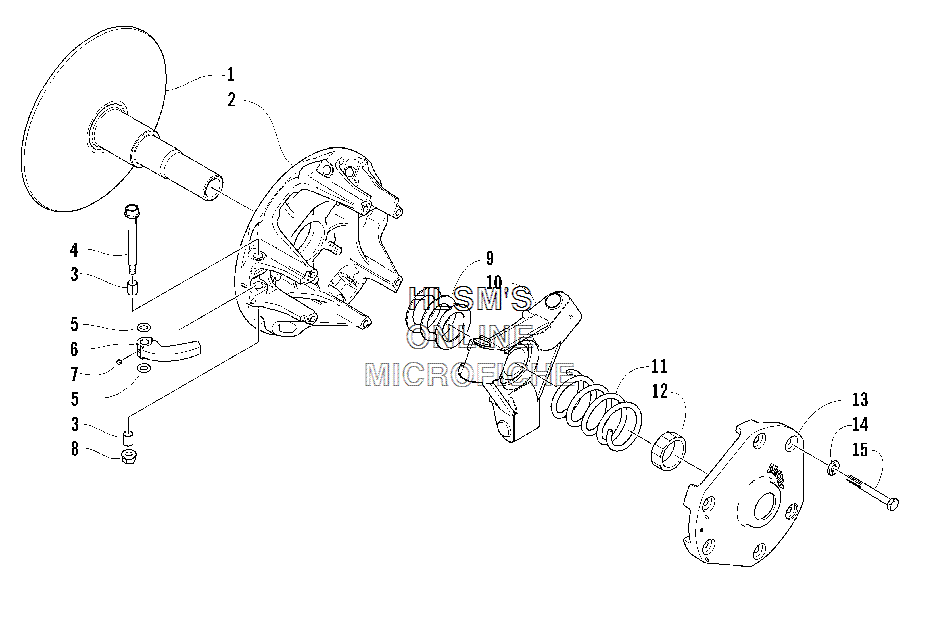

DRIVE CLUTCH для Arctic Cat M7 EFI Limited - 2005 года выпуска
-
№АртикулНазвание
-
-0725-475 DRIVE CLUTCH ASSEMBLYDRIVE CLUTCH ASSEMBLY
-
-4639-217 CAM ARM KITCAM ARM KIT
-
-0746-140 UNCALIBRATED DRIVE CLUTCHUNCALIBRATED DRIVE CLUTCH
-
10646-683 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-142 SHEAVE, MOVABLE (INC. 3)SHEAVE, MOVABLE (INC. 3)
-
30646-372 BEARINGBEARING
-
40646-747 PIN, CAM ARMPIN, CAM ARM
-
51602-692 O-RINGO-RING
-
60746-703 ARM, CAM (INC. 7)ARM, CAM (INC. 7)
-
60746-672 ARM, CAM (0, 3, 000 FT ALT.)ARM, CAM (0, 3, 000 FT ALT.)
-
60746-671 ARM, CAM (3, 6, 000 FT ALT.)ARM, CAM (3, 6, 000 FT ALT.)
-
60746-670 ARM, CAM (OVER 9, 000 FT ALT.)ARM, CAM (OVER 9, 000 FT ALT.)
-
71623-183 SCREW, SETSCREW, SET
-
88048-366 NUT, LOCKNUT, LOCK
-
90646-377 SPACERSPACER
-
100746-115 SPIDER ASSEMBLYSPIDER ASSEMBLY
-
110646-379 SPRING, DRIVE CLUTCH (TITANIUM) (YELLOW/WHITE)SPRING, DRIVE CLUTCH (TITANIUM) (YELLOW/WHITE)
-
120646-140 NUTNUT
-
130746-113 COVERCOVER
-
148051-212 WASHER, LOCK, SPRINGWASHER, LOCK, SPRING
-
151623-085 SCREW, MACHINESCREW, MACHINE
