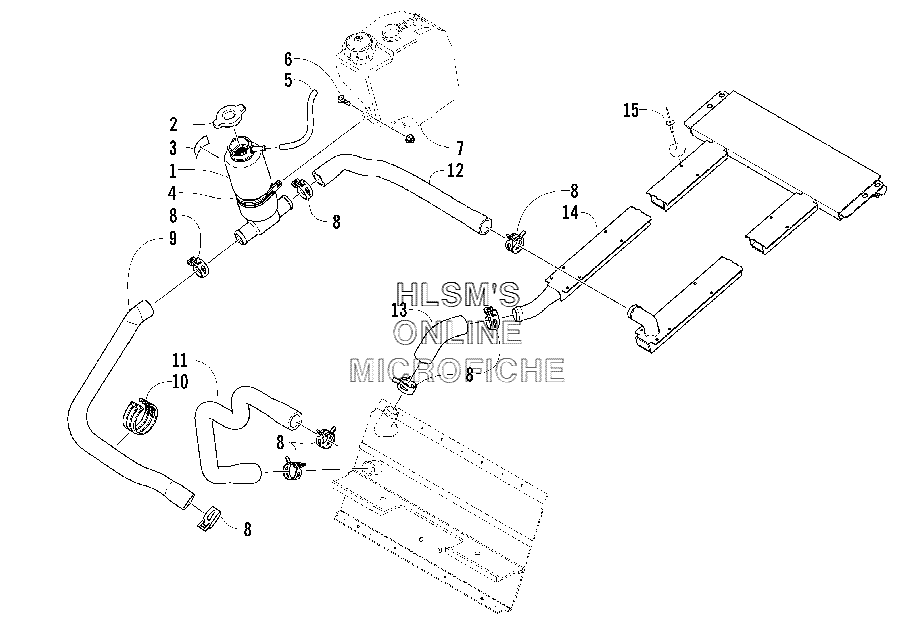

COOLING ASSEMBLY для Arctic Cat Pantera 550 - 2005 года выпуска
-
№АртикулНазвание
-
11606-396 TANK, COOLANTTANK, COOLANT
-
20606-268 CAP, FILLER NECKCAP, FILLER NECK
-
32611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
40623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
56101-001 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
56101-009 HOSE, VENT (50 FT)HOSE, VENT (50 FT)
-
68017-580 SCREW, MACHINESCREW, MACHINE
-
78048-366 NUT, LOCKNUT, LOCK
-
80623-736 CLAMP, HOSECLAMP, HOSE
-
90610-378 HOSE, COOLANT, ENGINE/COOLANT TANKHOSE, COOLANT, ENGINE/COOLANT TANK
-
100623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
110610-336 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
-
120610-379 HOSE, COOLANT TANK/REAR HEAT EXCHANGERHOSE, COOLANT TANK/REAR HEAT EXCHANGER
-
130610-244 HOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGER
-
141706-919 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
158060-706 RIVETRIVET
