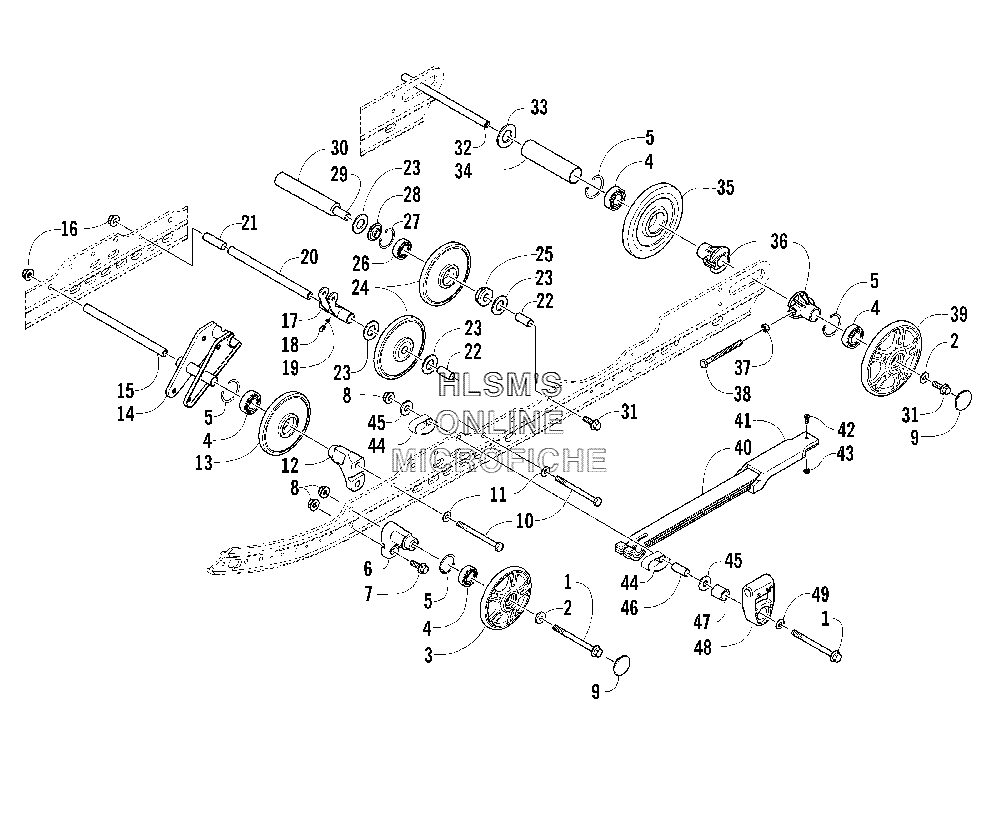

IDLER WHEEL ASSEMBLY для Arctic Cat Pantera 550 - 2005 года выпуска
-
№АртикулНазвание
-
18020-232 SCREW, CAPSCREW, CAP
-
20623-664 WASHERWASHER
-
32604-196 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
41604-847 BEARINGBEARING
-
50623-946 RING, RETAININGRING, RETAINING
-
62604-579 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
78020-224 SCREW, CAPSCREW, CAP
-
88048-486 NUT, LOCKNUT, LOCK
-
91604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
-
101623-037 SCREW, CAPSCREW, CAP
-
110623-044 WASHERWASHER
-
122604-738 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
131604-837 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
141704-235 BRACKET, MOUNTING SHOCK (FRONT)BRACKET, MOUNTING SHOCK (FRONT)
-
152604-737 AXLE, STEELAXLE, STEEL
-
168047-490 NUT, LOCKNUT, LOCK
-
171704-016 PIVOT, SHOCK (INC. 18, 19)PIVOT, SHOCK (INC. 18, 19)
-
181623-010 FITTING, GREASEFITTING, GREASE
-
191623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
201604-209 AXLE, STEELAXLE, STEEL
-
210603-105 SPACERSPACER
-
221604-213 SPACERSPACER
-
230623-675 WASHERWASHER
-
241604-684 WHEEL, IDLER (INC. 25, 28)WHEEL, IDLER (INC. 25, 28)
-
251604-773 INSERT, WHEEL, OUTSIDEINSERT, WHEEL, OUTSIDE
-
260107-598 BEARINGBEARING
-
270123-798 RING, RETAININGRING, RETAINING
-
281604-772 INSERT, WHEEL, INSIDEINSERT, WHEEL, INSIDE
-
290604-930 AXLEAXLE
-
301604-214 SPACERSPACER
-
318020-223 SCREW, CAPSCREW, CAP
-
322604-283 AXLE WHEEL (REAR)AXLE WHEEL (REAR)
-
330623-921 WASHERWASHER
-
341604-940 SPACERSPACER
-
351604-838 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
362604-260 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
378042-486 NUTNUT
-
380623-123 SCREW, CAPSCREW, CAP
-
392604-251 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
401704-279 SPO-RINGVERLOAD ASSEMBLY (INC. 41, 44)SPO-RINGVERLOAD ASSEMBLY (INC. 41, 44)
-
412604-788 BLOCK, WEARBLOCK, WEAR
-
420623-121 SCREW, MACHINESCREW, MACHINE
-
438041-276 NUT, LOCKNUT, LOCK
-
441604-412 CLIP, RETAININGCLIP, RETAINING
-
450623-746 WASHERWASHER
-
460604-739 BUSHING, OVERLOAD SPRINGBUSHING, OVERLOAD SPRING
-
471604-430 SPACER, SPRING SLIDESPACER, SPRING SLIDE
-
482604-516 SLIDE, SPRINGSLIDE, SPRING
-
498050-282 WASHERWASHER
