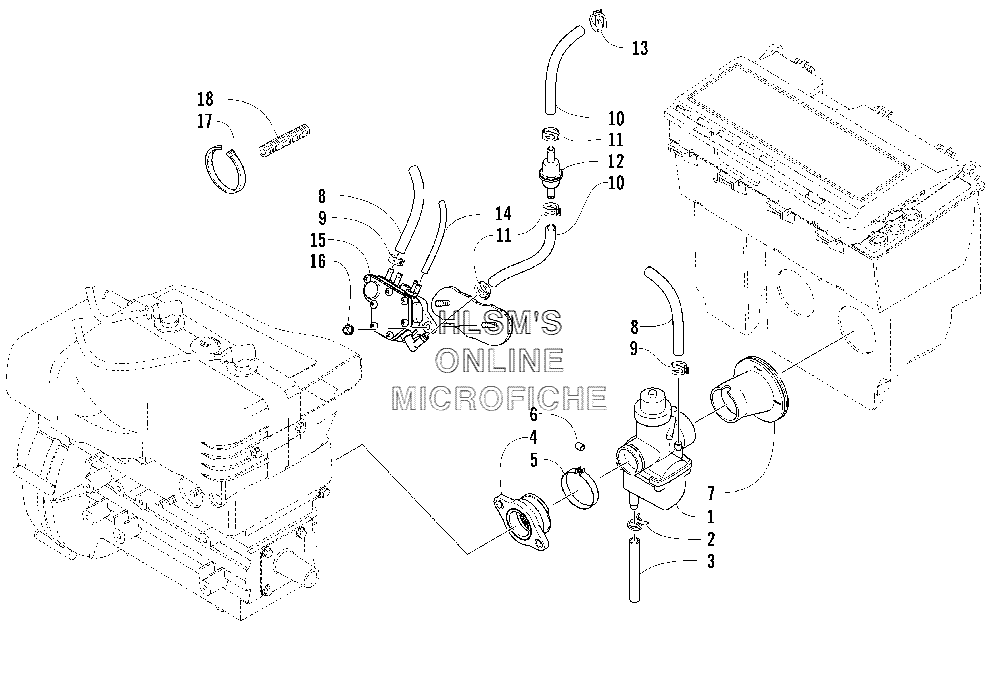

CARBURETOR AND FUEL PUMP ASSEMBLY для Arctic Cat Panther 570 - 2005 года выпуска
-
№АртикулНазвание
-
10770-622 CARBURETOR ASSEMBLY, VM34, 588CARBURETOR ASSEMBLY, VM34, 588
-
20623-652 CLAMP, HOSECLAMP, HOSE
-
30610-442 HOSE, DRAINHOSE, DRAIN
-
40115-544 FLANGE, CARBURETOR (INC. 5)FLANGE, CARBURETOR (INC. 5)
-
50109-709 CLAMP, CARBURETOR FLANGECLAMP, CARBURETOR FLANGE
-
60670-210 SPACER, CLAMPSPACER, CLAMP
-
71670-310 BOOT, AIR SILENCER (RIGHT)BOOT, AIR SILENCER (RIGHT)
-
71670-263 BOOT, AIR SILENCER (LEFT)BOOT, AIR SILENCER (LEFT)
-
86101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
86101-009 HOSE, GASLINE (50 FT)HOSE, GASLINE (50 FT)
-
91623-233 CLAMP, HOSECLAMP, HOSE
-
100610-629 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
100610-628 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
111623-351 CLAMP, HOSECLAMP, HOSE
-
121670-166 FILTER, FUELFILTER, FUEL
-
131623-234 CLAMP, HOSECLAMP, HOSE
-
140610-007 HOSE, IMPULSE (25 FT)HOSE, IMPULSE (25 FT)
-
151670-262 PUMP, FUELPUMP, FUEL
-
168048-366 NUT, LOCKNUT, LOCK
-
170123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
180716-558 CONDUIT, FLEXIBLE (10 FT)CONDUIT, FLEXIBLE (10 FT)
