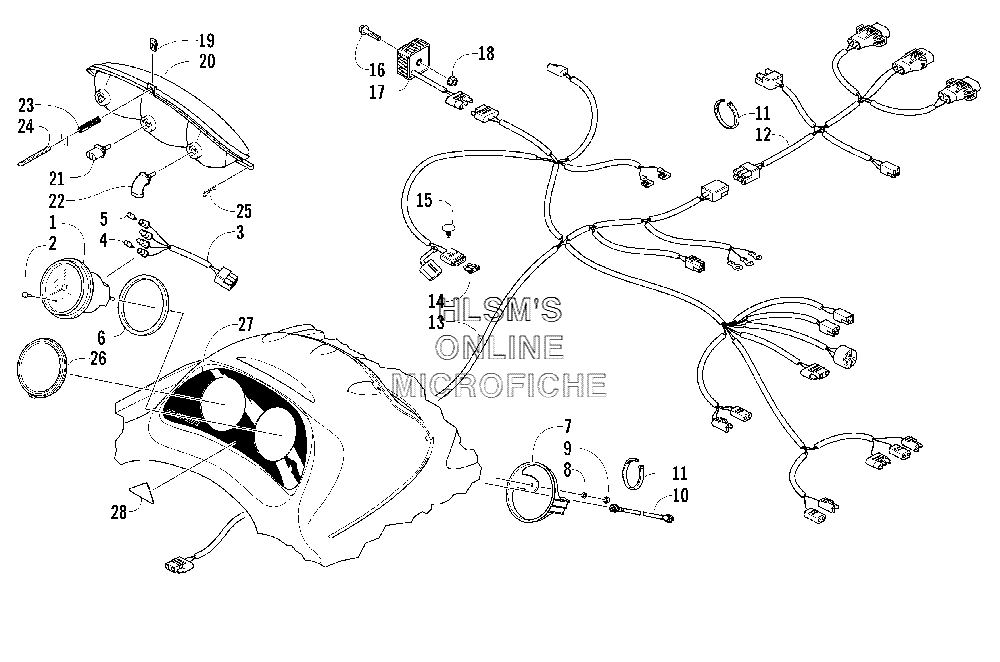

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat Panther 570 - 2005 года выпуска
-
№АртикулНазвание
-
10620-238 SPEEDOMETER (INC. 2, 5)SPEEDOMETER (INC. 2, 5)
-
20620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
30620-151 HARNESS, BULB, SPEEDOMETER (INC. 4, 5)HARNESS, BULB, SPEEDOMETER (INC. 4, 5)
-
40620-149 BULB, INNERDICATORBULB, INNERDICATOR
-
50230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
60620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
70620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
88050-212 WASHERWASHER
-
90623-038 NUT W/WASHERNUT W/WASHER
-
100620-269 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
110123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
120686-515 HARNESS, HOODHARNESS, HOOD
-
131686-085 HARNESS, MAIN (INC. 14)HARNESS, MAIN (INC. 14)
-
140630-100 FUSEFUSE
-
150623-589 CLIP, RETAININGCLIP, RETAINING
-
168020-045 SCREW, CAPSCREW, CAP
-
170630-182 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
188048-366 NUT, LOCKNUT, LOCK
-
190623-757 NUT, SPEEDNUT, SPEED
-
200609-250 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
210609-252 BULB, HEADLIGHT, LOW BEAMBULB, HEADLIGHT, LOW BEAM
-
220609-251 BULB, HEADLIGHT, HIGH BEAMBULB, HEADLIGHT, HIGH BEAM
-
230623-466 SPRING, ADJUSTMENTSPRING, ADJUSTMENT
-
240623-467 SCREW, THUMBSCREW, THUMB
-
250623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
262606-069 PLUG, GAUGE HOLEPLUG, GAUGE HOLE
-
276611-114 DECAL, INSTRUMENT, HOODDECAL, INSTRUMENT, HOOD
-
283611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
