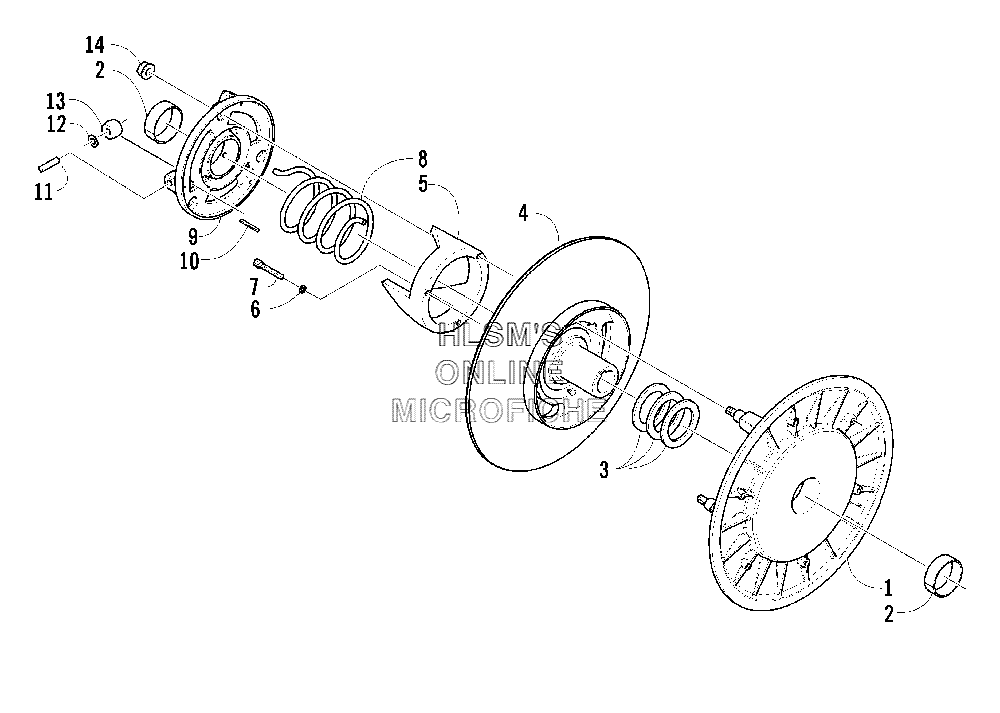

DRIVEN CLUTCH для Arctic Cat Z 440 LX - 2005 года выпуска
-
№АртикулНазвание
-
10748-023 SHEAVE, MOVABLE (INC. ONE NO. 2)SHEAVE, MOVABLE (INC. ONE NO. 2)
-
20648-009 BEARINGBEARING
-
30148-198 WASHER, THRUST: 0.030 IN.WASHER, THRUST: 0.030 IN.
-
30148-199 WASHER, THRUST: 0.060 IN.WASHER, THRUST: 0.060 IN.
-
40748-021 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
50648-002 BRACKET, TORQUE, 53 DEGBRACKET, TORQUE, 53 DEG
-
68051-152 WASHER, LOCKWASHER, LOCK
-
78005-404 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
80148-227 SPRING, DRIVEN CLUTCH (YELLOW)LOWSPRING, DRIVEN CLUTCH (YELLOW)LOW
-
90748-018 PLATE, ROLLER, ASSY (INC. ONE NO. 2 AND 10, 13)PLATE, ROLLER, ASSY (INC. ONE NO. 2 AND 10, 13)
-
108070-224 PIN, SPRINGPIN, SPRING
-
110648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
120648-082 WASHER, THRUST, CAM ROLLERWASHER, THRUST, CAM ROLLER
-
130648-079 ROLLER, CAMROLLER, CAM
-
148048-426 NUT, LOCKNUT, LOCK
