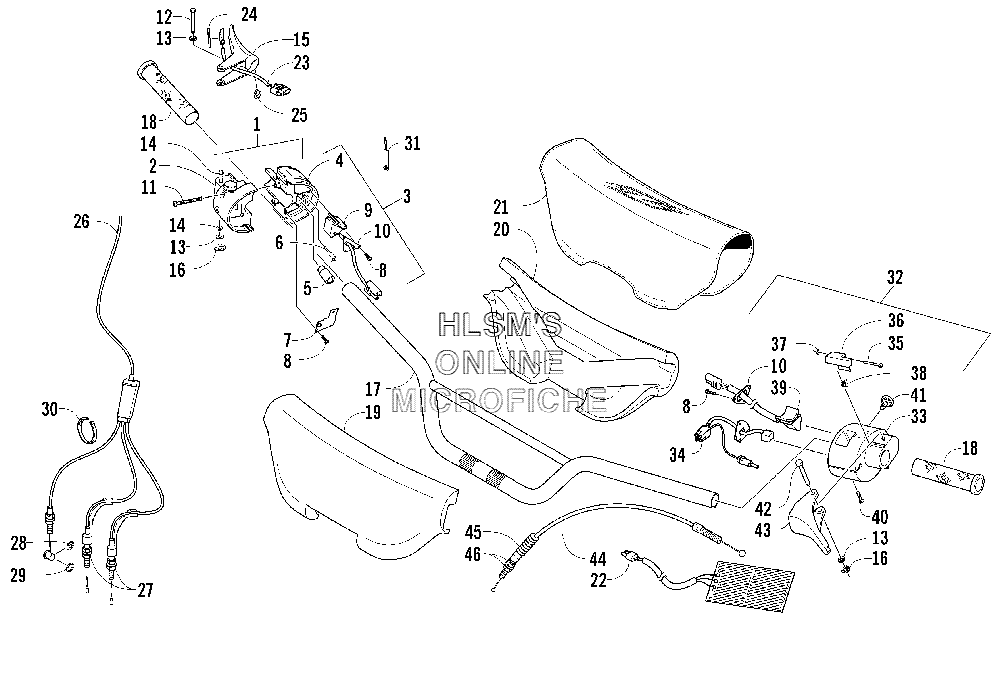

HANDLEBAR AND CONTROLS для Arctic Cat Z 440 LX - 2005 года выпуска
-
№АртикулНазвание
-
10609-483 CONTROL, THROTTLE (ON/OFF) (INC. 2, 10)CONTROL, THROTTLE (ON/OFF) (INC. 2, 10)
-
20609-493 CONTROL, THROTTLE, STOP SWITCH HALF (INC. TWO NO. 8)CONTROL, THROTTLE, STOP SWITCH HALF (INC. TWO NO. 8)
-
30609-499 CONTROL, THROTTLE, THUMBWARMER ASSEMBLY (ON/OFF) (INC. 4, 7, FIVE NO. 8, 9, AND ONE NO. 10)CONTROL, THROTTLE, THUMBWARMER ASSEMBLY (ON/OFF) (INC. 4, 7, FIVE NO. 8, 9, AND ONE NO. 10)
-
40609-494 CONTROL, THROTTLE, THUMBWARMER HALF W/O COMPONENTSCONTROL, THROTTLE, THUMBWARMER HALF W/O COMPONENTS
-
50609-497 PLUG, RUBBERPLUG, RUBBER
-
60609-498 CLIP, RETAINING, THROTTLE CABLECLIP, RETAINING, THROTTLE CABLE
-
70609-496 PLATE, COVERPLATE, COVER
-
80609-312 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90609-384 SWITCH, THUMBWARMER ASSY (ON/OFF) (INC. THREE NO. 8 AND ONE NO. 10)SWITCH, THUMBWARMER ASSY (ON/OFF) (INC. THREE NO. 8 AND ONE NO. 10)
-
100609-378 PLATE, COVERPLATE, COVER
-
110609-492 SCREW, MACHINESCREW, MACHINE
-
120609-317 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
130609-036 WASHERWASHER
-
140609-501 WASHER, SHOULDER, THROTTLEWASHER, SHOULDER, THROTTLE
-
150609-363 LEVER, THROTTLELEVER, THROTTLE
-
160609-040 RING, RETAININGRING, RETAINING
-
170705-360 HANDLEBARHANDLEBAR
-
182606-084 GRIP, HANDLEBARGRIP, HANDLEBAR
-
190605-354 PAD, HANDLEBAR (FRONT)PAD, HANDLEBAR (FRONT)
-
200605-353 PAD, HANDLEBAR (REAR)PAD, HANDLEBAR (REAR)
-
210605-683 WRAP, HANDLEBARWRAP, HANDLEBAR
-
220609-684 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
230609-685 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
240617-248 PAD, INNERSULATORPAD, INNERSULATOR
-
250623-262 CLIP, WIRECLIP, WIRE
-
260687-059 CABLE, THROTTLE (INC. 27)CABLE, THROTTLE (INC. 27)
-
270623-464 NUT, LOCKING, THROTTLE CABLENUT, LOCKING, THROTTLE CABLE
-
280124-057 E, RINGE, RING
-
290124-056 WASHERWASHER
-
300123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
311639-963 TOOL REMOVAL, KIT, THROTTLE CABLETOOL REMOVAL, KIT, THROTTLE CABLE
-
320609-393 SWITCH, BRAKE, ASSY (INC. SEVEN NO. 8, ONE NO. 10, AND 33, 41)SWITCH, BRAKE, ASSY (INC. SEVEN NO. 8, ONE NO. 10, AND 33, 41)
-
330609-478 HOUSING, BRAKE SWITCH (ON/OFF)HOUSING, BRAKE SWITCH (ON/OFF)
-
340609-452 SWITCH, DIMMER, BRAKESWITCH, DIMMER, BRAKE
-
350609-050 PIN, ACTUATORPIN, ACTUATOR
-
360609-314 ACTUATOR, BRAKE, PARKINGACTUATOR, BRAKE, PARKING
-
370609-051 RING, RETAININGRING, RETAINING
-
380609-313 SPRING, ACTUATORSPRING, ACTUATOR
-
390609-385 SWITCH, HANDWARMER ASSY (ON/OFF) (INC. THREE NO. 8 AND ONE NO. 10)SWITCH, HANDWARMER ASSY (ON/OFF) (INC. THREE NO. 8 AND ONE NO. 10)
-
400609-085 SCREW, MACHINESCREW, MACHINE
-
410609-474 KNOB, DIMMER SWITCHKNOB, DIMMER SWITCH
-
420609-315 AXLE, LEVER, BRAKEAXLE, LEVER, BRAKE
-
430609-266 LEVER, BRAKELEVER, BRAKE
-
440687-089 CABLE, BRAKECABLE, BRAKE
-
450109-194 SPRING, BRAKE CABLESPRING, BRAKE CABLE
-
460123-406 NUT, FLANGENUT, FLANGE
